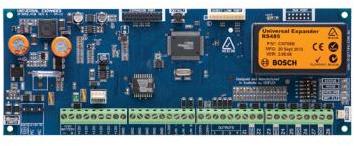

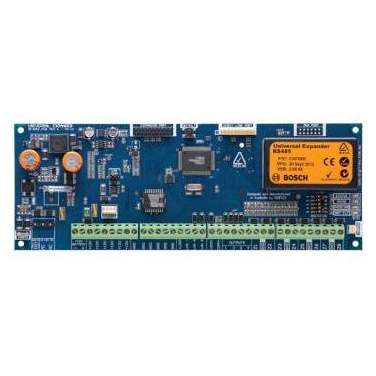

Bosch CM705PB Universal LAN Zone Expander for 6000 Panel
Web ID: 166
High security module with anti-substitution protection and resettable fuse protection on power out terminals. Supports Single, Alarm+Tamper and Split EOL, with up to 15 different EOL Resistor options. 6 Power Out terminals simplify wiring; outputs are overload and short circuit proof. Service Code Pad connection point. LAN Termination Shunt and status indicators included
Manufacturer PN: CM705B
Warranty: 3 Year
Manufacturer Website
$434
| Power Requirements | |
| Operating Voltage | 10.0V DC – 14.5V Dc @ 90mA Max |
| Voltage Input (Primary Source) | 16-18V AC 50-60Hz – 24VA External Power Adaptor or 220-240V AC to 18V AC 50-60Hz – 24VA Internal Transformer |
| Stand-By – Battery (Secondary Source) | 12V DC, 7.2AH sealed rechargeable battery Panasonic |
| Connections | |
| Module Connection (RS485 LAN) | Max total LAN length using multi strand security cable = 300m;Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m.See manual for complete wiring instructions. |
| Programmable Outputs: | 4 protected open-collector outputs capable of providing a maximum of 500mA (-) each. Outputs are monitored for short and open circuit and can monitor the state of horn speakers and other connected devices. |
| Power Output Terminals | COMM+ - 2.5A high current output for use with onboard outputs, PTC fuse protected. +12V -1A outputs for use with detectors or powering other modules, PTC fuse protected. |
| Environmental Considerations | |
| Temperature | -30° to 55°C Operating |
| Humidity | 5% to 85% at 30°C non-condensing |
| PCB | |
| Fixing Method | The CM705B can be mounted in the MW700, MW710, Mw720 or MW730 enclosures using clip-in PCB mounts supplied |
| PWA Dimensions | 235(W) x 85(D) x 40(H)mm |
| Warranty | 3 years |
