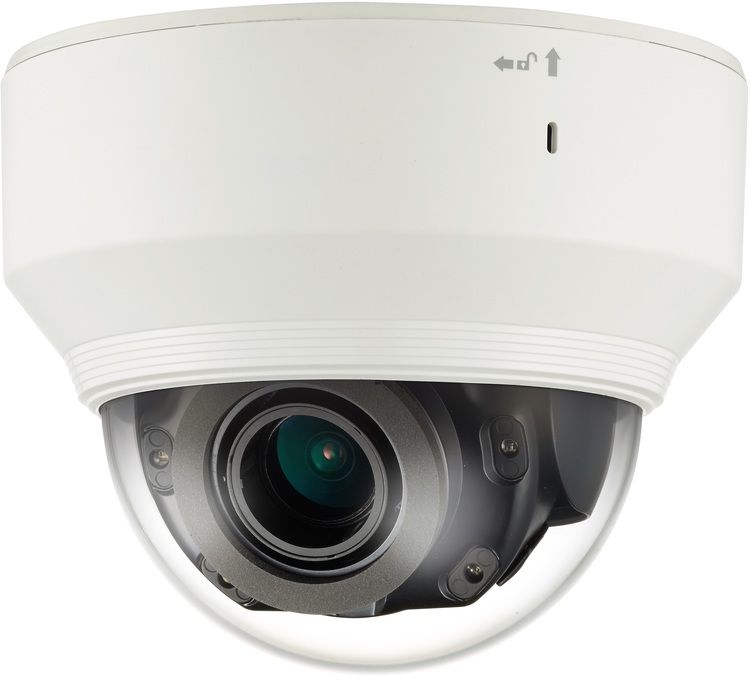

Hanwha Wisenet P Series PND-9080R 4K Internal Dome with IR & Vari Focal Lens
Web ID: 703
The PND-9080R from Hanwha's Wisenet P Series Performance IP camera line is a 4K, 12MP indoor dome featuring Hanwha's WiseStream technology, triple codec H.265/H.264/MJPEG, motorized vari-focal 4.5~10mm lens, True D/N, True WDR (120dB), IR (30m), edge analytics, SD card slot (SD/SDHC/SDXC up to 128GB), digital auto tracking, Hallway view, IK08, supports PTZ handover function.
Manufacturer PN: PND-9080R
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
PND-9080R
Hanwha Wisenet P Series 4K Internal Dome with IR & Vari Focal Lens
Key Features
- Max. 12megapixel (4000 x 3000) resolution
- Max. 20fps@12M, Max.30fps@8M
- 0.3Lux@F1.6 (Color), 0Lux (B/W : IR LED on)
- 4.5 ~ 10mm (2.2x) motorized varifocal lens
- H.265, H.264, MJPEG support
- Day & Night (ICR), WDR (120dB), Simple focus, P-Iris
- Motion detection, Defocus detection, Tampering
- SD/SDHC/SDXC memoty slot (Max, 128GB), NAS, Local PC support
- Hallway view (Rotate 90° / 270°)
- WiseStream support, Digital auto tracking
- IK08, Bi-directional audio support
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | PND-9080R |
| Series | WISENET P SERIES |
| Chip Inch Size | 1/2 |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 12MP |
| HD | Yes |
| Megapixel | Yes |
| Sensitivity lux | 0.01 ~ 0.3 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 12 V DC, PoE Power Consumption: 9.5 ~ 10.5 W |
| Focal length | 4.5 ~ 10mm |
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 2 ~ 1/12,000s |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Built-in IR LED | Yes |
| Video Output | 1.0 Vpp / 75Ω composite |
| Zoom Ratio | x2.2 |
| Network Properties | Interface: RJ-45 (10/100/1000BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 30 fps |
| Physical Specifications | Dimensions mm: 141 x 113 Weight g: 610 |
| Environmental Specifications | Operating Temp oC: -30 ~ +55 C (-22 ~ +131 F) Operating Humidity %: 0 ~ 90 Protection: IK08 |
| System Requirments | Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Web Browser: Google Chrome 47, MS Edge 20 |
| Additional info |
|
