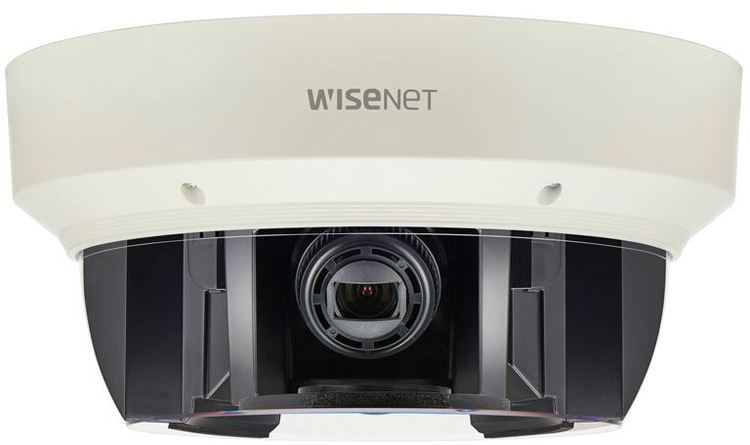

Hanwha Wisenet PNM-9081VQ 20MP Outdoor 360 Multi Sensor Camera With 4 x 5MP Vari Focal Lens

Web ID: 766

Network vandal outdoor Multi-sensor Multi-Directional dome camera, (5MP X 4 sensors) 20MP @ 30fps WDR off/on, motorized vari-focal Lens 2.6x (3.6 ~ 9.4mm) (102.5 ~ 38.7), triple Codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, Defocus detection, built in analytics, true D/N, 4x SD card, hallway view, HLC, Defog detection, DIS(Gyro sensor), 12VSC/HPoE (power adaptor is included), IP66/IK10, -40C ~ +55C (-40F ~ +131F)
Manufacturer PN: PNM-9081VQ
Warranty: 3 Year
Manufacturer Website

PNM-9081VQ
Hanwha Wisenet 20MP Outdoor 360 Multi Sensor Camera With 4 x 5MP Vari Focal Lens

Key Features

  • Max 20MP @ 30fps, 5MP X 4 sensors using one IP address
  • Motorized vari-focal 3.6 ~ 9.4mm (FOV: 102.5° ~ 38.7°)
  • Triple codec: H.265, H.264 and MJPEG multiple streaming
  • WiseStream II compression technology
  • WDR 120dB @ 20MP @30fps
  • Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
  • Hallway view
  • SD cards (each channel has its own)
  • Gyro sensor for digital image stabilization
  • Power: HPoE (HPoE adaptor is included) or 12VDC
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code PNM-9081VQ
Series WISENET P SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution TVL 20MP
HD Yes
Megapixel Yes
Sensitivity lux 0.007 ~ 0.07
Digital (DSP) Yes
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 29 ~ 33 W
Focal length 3.6 ~ 9.4mm
Compression H.265, H.264, MPEG-4, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000s
S/ N (Signal/ Noise) Ratio dB 50
Built-in IR LED Yes
Video Output 1.0 Vpp / 75Ω composite
Zoom Ratio x2.6
Network Properties Interface: RJ-45 (10/100/1000BASE-T)
Network Protocols: TCP/IP,UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP,NTP,HTTP,HTTPS, SSL/TLS,DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP,DNS,DDNS,QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 314 x 152
Weight g: 4,890
Environmental Specifications Operating Temp oC: -40 ~ +55 C (-40 ~ +131 F)
Operating Humidity %: < 90
Protection: IP66, IK10
System Requirments Operating System: Windows 7, 8, 10, MacOS X 10.10, 10.11, 10.12
Web Browser: :Google Chrome 54, MS Edge 38, Mozilla Firefox 49
Additional info
  • 4ea x 2560 x 1920 resolution (Max. 20MP)
  • 4ea x 3.6 ~ 9.4mm (2.6x) motorised varifocal lens
  • 4ea x Max. 30fps@5M (H.265,H.264)
  • Digital Image Stabilization with Built-inGyro Sensor
  • H.265,H.264, MJPEGCodec Supported
  • Day&Night (ICR),WDR (120dB)
  • Motion detection,Tampering,AdvancedVideoAnalytics
