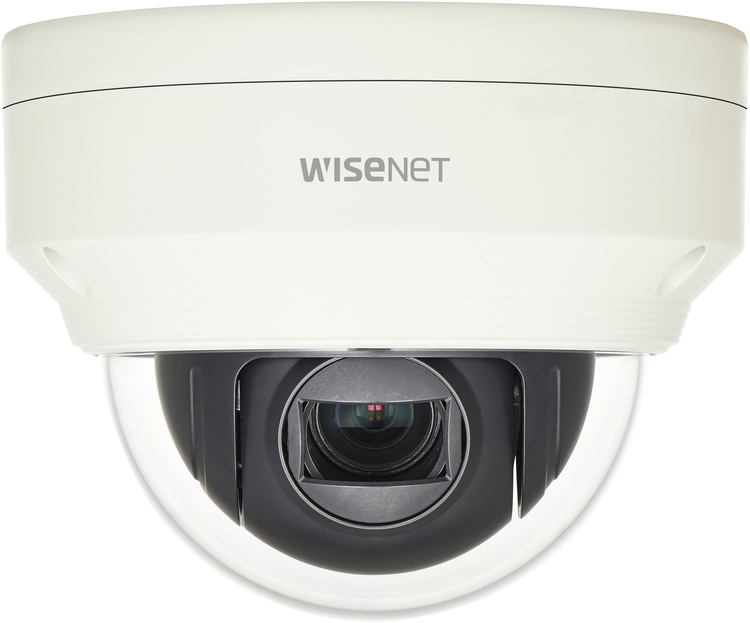

Hanwha Wisenet X Series XNP-6040H 2MP Mini PTZ With Vari Focal Lens

Web ID: 741

Wisenet X powered by Wisenet 5 network outdoor PTZ camera, 2MP, full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB), 4.3x optical zoom lens (2.8mm ~12mm) (119.5 ~ 27.9), pan: 0~350, Tilt: 0~ 90, H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE, IP66, IK10, -22F ~ 131F
Manufacturer PN: XNP-6040H
Warranty: 3 Year
Manufacturer Website

XNP-6040H
Hanwha Wisenet X Series 2MP Mini PTZ With Vari Focal Lens

Key Features

  • Max. 2Megapixel (1920 x 1080) resolution
  • 2.8 ~ 12mm (4.3x), 24x digital zoom
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • WiseStreamII Support
  • Day & Night (ICR), WDR (150dB)
  • Digital image stabilization with Built-in Gyro sensor
  • Loitering, Directional detection, Fog detection, Audio detection,
    Digital auto tracking, Sound classification, Tampering
  • Motion detection
  • SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
  • IP66, IK10 support
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XNP-6040H
Series WISENET X SERIES
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 2MP
Megapixel Yes
Dome Type PTZ
Sensitivity lux 0.0015 ~ 0.015
Digital (DSP) Yes
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 8.6 W
Focal length 2.8 ~ 12mm
Presets 300
Compression H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000sec
S/ N (Signal/ Noise) Ratio dB 50
Zoom Ratio x4.3
Network Properties Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 60 fps
Physical Specifications Dimensions mm: 136 x 106
Weight g: 780
Environmental Specifications Operating Temp oC: -30 ~ +55 C (-22 ~ +131 F)
Operating Humidity %: < 90
Protection: IP66, IK10
Additional info
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • WiseStreamII Support
  • Day & Night (ICR), WDR (150dB)
  • Digital image stabilization with Built-in Gyro sensor
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection
  • SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
