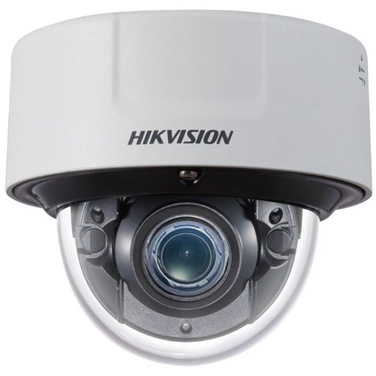

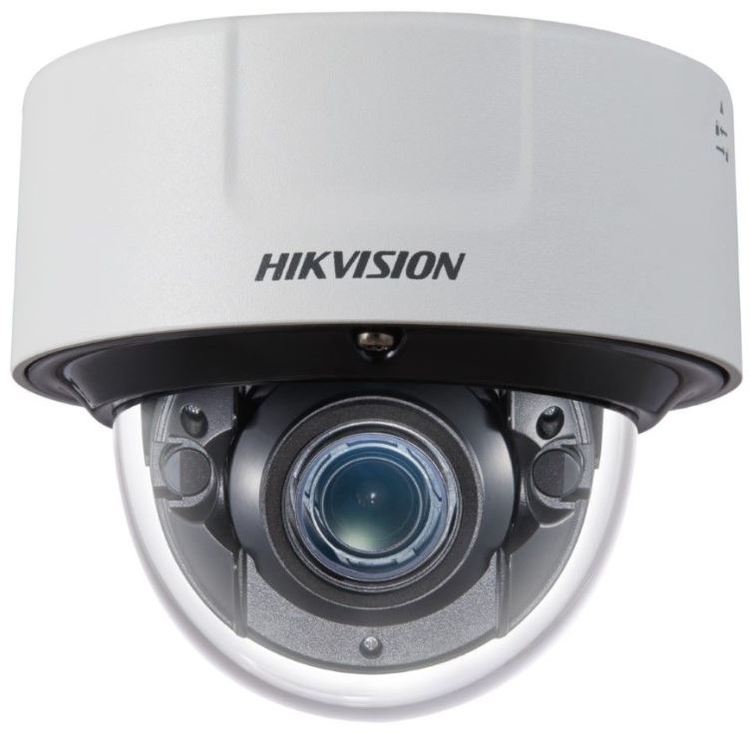

Hikvision DS-2CD5146G0-IZS IP Indoor Darkfighter Dome With Motorised Lens
Web ID: 865
Part of Hikvision's enterprise range of network cameras, the DS-2CD5146G0-IZS is an indoor dome camera that produces exceptional 4MP high-resolution video. Powered by Darkfighter and Lightfighter technology, this camera can produce clear and crisp images in environments with extreme background lighting or in ultra-low light situations. The HIK-2CD5146G0IZS includes an ideal combination of smart features for its affordable price such as 140dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO and smart video content analytics (VCA). Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively.
Manufacturer PN: DS-2CD5146G0-IZS
Warranty: 3 Year
Manufacturer Website
$791
DS-2CD5146G0-IZS
IP Indoor Darkfighter Dome With Motorised Lens
Key Features
- 1/1.8 inch progressive scan CMOS
- 2560 x 1440 at 30fps
- Colour: 0.002 lux at (F1.2, AGC ON)
- 2.8-12mm motorised varifocal lens
- H.265, H.265+, H.264+, H.264
- 140dB wide dynamic range (WDR)
- Up to 30m IR
- Video content analytics (VCA) including face detection and object counting
- 5 defined streams and up to 5 custom streams supported
- Supports on-board storage up to 256 GB
- IK10 rating
- 12VDC or PoE
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.8" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter time: | 1 s to 1/100,000 s | |
| Slow shutter: | Yes | |
| Lens: | 2.8 to 12 mm | |
| Lens Mount: | Integrated | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 140dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Auto, semi-auto, manual | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
| Video bit rate: | 256Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/128-768Kbps(PCM) | |
| Dual Stream: | Yes | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2560 × 1440 | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) | |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) | |
| Image Enhancement: | BLC, HLC, Defog, EIS | |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
| Target Cropping: | Yes | |
| BLC: | Support | |
| HLC: | Support | |
| Smart Defog: | Support | |
| EIS: | Support | |
| 3D DNR: | Support | |
| ROI: | Support | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
| Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter | |
| System Compatibility: | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK | |
| Intelligent | ||
|---|---|---|
| Behavior analysis: | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) | |
| Audio: | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono | |
| Alarm: | 1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA) | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| Video Output: | 1Vp-p composite output (75 Ω/CVBS) | |
| On-board storage: | Built-in micro SD/SDHC/SDXC slot, up to 256 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio I/O: | support | |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, defocus detection | |
| Recognition: | Face Detection | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| IR Range: | Up to 30m | |
| Operation Condition: | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3): 36 V to 57 V | |
| Power Consumption: | 12 VDC ± 20%: 0.7 A, max. 8 W PoE (802.3af, class 3): 36 V to 57 V): 0.3 A to 0.2 A | |
| Impact Protection: | IK10 | |
| Dimensions: | Camera: Φ140.5 × 122.6 mm (Φ5.5″ × 4.8″) With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″) | |
| Weight: | Camera: 900 g (1.98 lb.) With package: 1250 g (2.76 lb.) | |
