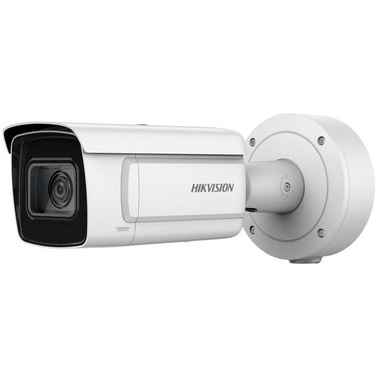

Hikvision DS-2CD5A46G0-IZHSY 4MP IR Anti Corrosion Bullet Camera With Motorised Lens

Web ID: 854

Hikvision DS-2CD5A46G0-IZHSY 4MP IR Anti Corrosion Bullet Camera With Motorised Lens
Manufacturer PN: DS-2CD5A46G0-IZHSY
Warranty: 3 Year
Manufacturer Website

$1599

DS-2CD5A46G0-IZHSY
4MP IR Anti Corrosion Bullet Camera With Motorised Lens

Key Features

  • 1.8” Progressive Scan CMOS
  • 2560 × 1440 @ 30fps

  • Color: 0.002 Lux @ (F1.2, AGC ON)

  • H.265, H.265+, H.264+, H.264

  • 140dB WDR

  • 3D DNR

  • 6 behavior analyses, 3 exception detections, face detection

  • 5 defined streams and up to 5 custom streams supported

  • On-board storage up to 256 GB

  • IP67,IK10

Camera
Image Sensor:   1/1.8" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time:   1 s to 1/100,000 s
Slow shutter:   Yes
Lens:   2.8 to 12 mm
Lens Mount:   Integrated
Adjustment Range:   Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   140dB
Focus:   Auto, semi-auto, manual
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:   Baseline Profile/Main Profile/High Profile
Video bit rate:   256Kbps~16Mbps
Dual Stream:   Yes
Triple Streams:   Yes
Max. Image Resolution:   2560 × 1440
Sub Stream:   50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:   50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement:   BLC, HLC, 3D DNR, Defog, EIS
Image Settings:   Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping:   Yes
BLC:   Support
HLC:   Support
Smart Defog:   Support
EIS:   Support
3D DNR:   Support
Picture Overlay:   LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch:   Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage:   Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:   Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:   One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility:   ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Intelligent
Behavior analysis:   Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface:   1 RJ45 10M/100M/1000M Ethernet port
Alarm:   2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Alarm Input:   2
Alarm Output:   2
Video Output:   1Vp-p composite output (75 Ω/CVBS)
On-board storage:   Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button:   Yes
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Region Entrance:   Enter a pre-defined virtual region from the outside place
Region Exiting:   Exit from a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection, defocus detection
Recognition:   Face Detection
Statistics:   Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range:   Up to 50 m
Operation Condition:   -30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 V DC ± 20%, PoE (802.3at, class 4)
Power Consumption:   -IZS: 12 VDC, 1.0 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A
-IZHS: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Impact Protection:   IK10
Weather Proof:   IP67
Dimensions:   Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight:   Camera: approx. 2.45 kg (5.40 lb.)
With package: approx. 2.7 kg (5.95 lb.)
