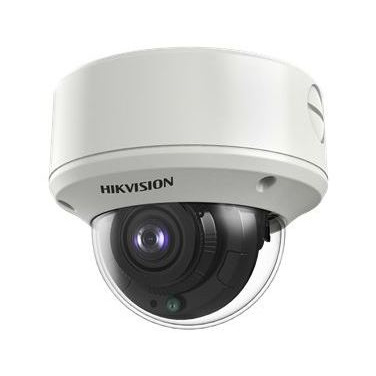

Hikvision DS-2CE59H8T-AVPIT3ZF 5MP HD-TVI Dome Camera With Motorised Lens
Web ID: 907
Hikvision's HIK-2CE59H8T-AVP is an outdoor dome camera that produces exceptional 5MP high resolution video images over coaxial cable. This camera is part of Hikvision's TVI 4.0 range and provides an ideal solution for the upgrade of existing analogue sites to high definition surveillance without the need to re-cable. The inbuilt EXIR technology delivers unparalleled clarity at night for up to 60m and with a motorised varifocal lens range of 2.7 to 13.5mm, this camera is great for covering wide areas providing clear focus on the detail that is really required. Part of the H8T series, this camera has switchable video output which give the SI the ability change video signal type between TVI, AHD, CVI and CVBS signal, to suit different appliaction. In addition to switchable output, the H8T series also supports 130dB true wide dynamic range, amazing ultra-low light performance down to 0.003Lux.
Manufacturer PN: DS-2CE59H8T-AVPIT3ZF
Warranty: 3 Year
Manufacturer Website
DS-2CE59H8T-AVPIT3ZF
5MP HD-TVI Dome Camera With Motorised Lens
Key Features
- 5MP high-performance CMOS
- 2560 x 1944 resolution
- 2.7 to 13.5mm motorised varifocal lens
- Auto focus
- OSD menu, 3D DNR, 130dB WDR
- EXIR technology, up to 60m IR distance
- Up the Coax (HIKVISION-C)
- IP67, IK10 rating
- 9.6 to 14.4 VDC
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.7 mm to 13.5 mm motorized vari-focal lens | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| Auto White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Support | |
| WDR: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC | |
| Impact Protection: | IK10. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 60m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | Ø 145.2 mm × 124.1 mm ( Ø 7.1" × 4.9") | |
| Weight: | Approx. 640 g (1.41 lb.) | |
Accessories:
