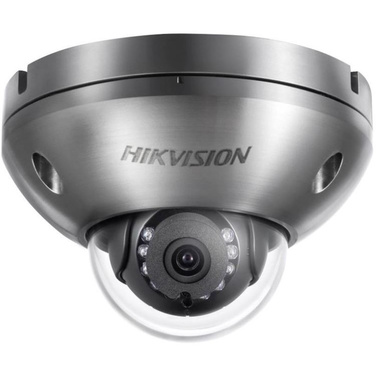

Hikvision DS-2XC6142FWD-IS 4 MP Anti-Corrosion Network Dome Camera With 4mm Lens

Web ID: 852

Hikvision's latest anti-corrosion cameras utilise 316L stainless steel housings for maximum corrosion resistance. They are IP67 water/dust ingress rated and WF-2, NEMA 4X and C5-M anti-corrosion rated, making them ideal for coastal regions where salt corrosion is a major concern and also for food processing plants where harsh chemicals are being used to sanitise the environment on a regular basis. This series is available in a variety of form factors including fixed domes, vari-focal dome, speed domes and fixed lens bullet cameras.
Manufacturer PN: DS-2XC6142FWD-IS
Warranty: 3 Year
Manufacturer Website

$2435

DS-2XC6142FWD-IS
4 MP Anti-Corrosion Network Dome Camera With 4mm Lens

Key Features

  • High 4MP resolution
  • 120dB wide dynamic range
  • H.265, H.265+, H.264, H.264+ compression
  • Supports on board storage up to 128GB
  • 10m IR
  • Anti corrosion standard, WF-2, NEMA 4x, C5-M
  • IP67
  • 4mm lens
Image Sensor:   1/3" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   0.01Lux @(F1.2, AGC ON) ,0 Lux with IR on
0.028 Lux @(F2.0, AGC ON), 0 Lux with IR on
Shutter time:   Support
Slow shutter:   1 s to 1/100,000 s
Lens:   4/6mm optional
Lens Mount:   M12
Auto Iris:   DC drive
Adjustment Range:   Tilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°
Day& Night:   IR cut filter with auto switch
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Compression Standard
Video Compression:   H.265/H.264/MJPEG
H.264 code profile:   Baseline profile/main profile/high profile
Video bit rate:   32Kbps~16Mbps
Audio Compression:   G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:   64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbp(MP2L2)
Dual Stream:   Yes
Triple Streams:   Yes
Max. Image Resolution:   2560 × 1440
Frame Rate:   50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720, 528 × 384)
60Hz: 24fps (2560 × 1440, 1920 × 1080, 1280 × 720, 528 × 384)
Sub Stream:   50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 24fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream:   50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Image Enhancement:   BLC/3D DNR/Defog
Image Settings:   Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Target Cropping:   Support
BLC:   Support
3D DNR:   Support
ROI:   Support 4 customized region for each stream, and face dynamic tracking
Picture Overlay:   LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch:   Auto/Schedule/Triggered by Alarm In
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:   Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
General Function:   Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask
Interface
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
Alarm:   Support
Alarm Input:   1
Alarm Output:   1
On-board storage:   Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:   Yes
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Region Entrance:   Enter a pre-defined virtual region from the outside place
Region Exiting:   Exit from a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection, defocus detection
Recognition:   Face Detection
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   5 V DC ± 10% /PoE (802.3af)
Power Consumption:   Max. 5W
Weather Proof:   IP67
IR Range:   10 meters
Dimensions:   Camera: Φ 113 × 77.3 mm (4.45″ × 3.04″)
Package: 257 × 167 ×145 mm (10.12″ × 6.57″ × 5.71″)
Weight:   Camera: 1680 g (3.7 lb.)
