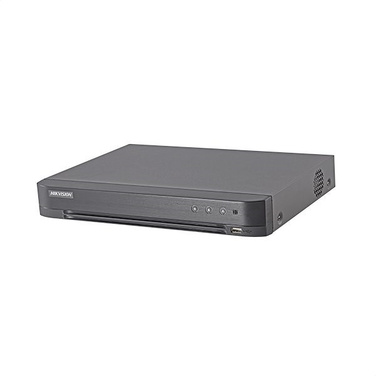

Hikvision DS-7204HTHI-K2 4CH 8MP HD-TVI DVR - Includes 3TB Hard Drive

Web ID: 791

Hikvision DS-7204HTHI-K2 4CH 8MP HD-TVI DVR - Includes 3TB Hard Drive
Manufacturer PN: DS-7204HTHI-K2
Warranty: 3 Year
Manufacturer Website

$650

DS-7204HTHI-K2
4CH 8MP HD-TVI DVR - Includes 3TB Hard Drive

Key Features

  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • Up to 8 MP resolution for recording
  • HDMI output at up to 4K (3840 × 2160) resolution
  • Long distance transmission over UTP and coaxial cable
  • 4ch synchronous playback
Video/Audio Input
Audio Input:   4-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Video Input Interface:   BNC (1.0 Vp-p, 75Ω)
Audio Compression:   G.711u
Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output:   1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output:   1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz
Recording resolution:   8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:   Main stream:
8 MP@12fps, 5 MP@20fps, 3 MP@18fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-16384 Kbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Playback Resolution:   8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:   4-ch
Network management
Remote connections:   32
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Hard Disk Driver
Interface Type:   2 SATA Interfaces
Capacity:   Up to 10 TB capacity for each disk
External Interface
Network Interface:   1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:   1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:   1; standard RS-485 serial interface, half-duplex
General
Power Supply:   12V DC
Consumption:   ≤ 15W(without hard disks)
Working Temperature:   -10 oC to +55 oC (14 oF to 131 oF)
Working Humidity:   10% to 90%
Dimensions:   380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:   ≤ 1.5 kg (3.3 lb)
