Hikvision DS-7616NI-I2/16P 16CH IP NVR - Includes 3TB Hard Drive - DigitalSi
AJAX Loading

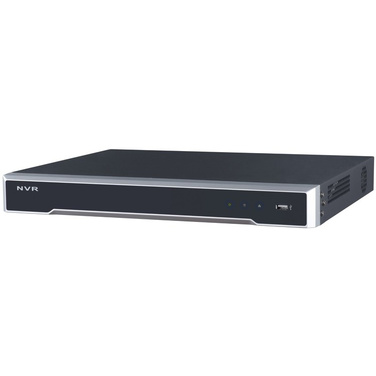

Hikvision DS-7616NI-I2/16P 16CH IP NVR - Includes 3TB Hard Drive

Web ID: 49

Hikvision's DS-7616NI-I2/16P is a 16 channel network video recorder with 16 embedded plug and play PoE ports. Part of Hikvision's I Series NVR range, it houses a 4-core processor and supports the H.265 intelligent compression standard which aims to reduce bandwidth and storage requirements by up to 50%. This NVR combines features such as audio and video decoding technology which ultimately contribute to the I Series range running smoother than previous generations. Also featuring 16 PoE network interfaces for easy plug and play setup and capable of 4K ultra HD video output via HDMI and 1080P via VGA, this NVR supports up to 12MP resolution recording. This reliable, high performance unit is flexible and can be installed for medium-sized commercial installations where a complete HD surveillance experience is required.
Manufacturer PN: DS-7616NI-I2/16P
Warranty: 3 Year
Manufacturer Website

$981

DS-7616NI-I2/16P
16CH IP NVR - Includes 3TB Hard Drive

Key Features

  • Third-party network cameras supported
  • Up to 12 Megapixels resolution recording
  • Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)resolution
  • 8/16-ch network cameras can be connected with 80M/160M incoming bandwidth
  • Up to 2 SATA interfaces
  • Plug & Play with up to 16 independent PoE network interfaces
  • Support dual-os to ensure high reliability of system running
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats
  • 3 year Warranty And Support
Video/Audio Input
IP video input: | 16-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 160Mbps
Outgoing bandwidth: | 256Mpbs
Remote connection: | 128
Video/Audio Output
HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: | 16-ch
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 4-ch@8MP,16-ch@1080P
Hard Disk
SATA: | 2 SATA interfaces for 2 HDDs
Capacity: | Up to 6TB capacity for each HDD
External Interface
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: | RS-232
USB Interface: | Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: | 4-ch
Alarm Out: | 1-ch
POE
Interface: | 16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power: | 200W
Supported Standard: | AF and AT
General
Power Supply: | 100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE): | ≤15 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 380 chassis
Dimensions: | 380 × 290 ×45 mm (15.0"× 11.4" × 1.8")
Weight(without HDD): | ≤ 3 Kg (6.6 lb)
