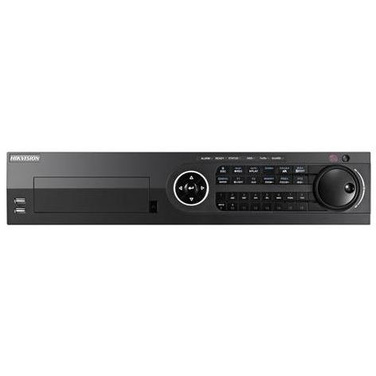

Hikvision DS-8124HUHI-K8 24CH HD-TVI DVR

Web ID: 793

Hikvision DS-8124HUHI-K8 24CH HD-TVI DVR
Manufacturer PN: DS-8124HUHI-K8
Warranty: 3 Year
Manufacturer Website

$2000

DS-8124HUHI-K8
24CH HD-TVI DVR

Key Features

  • H.265pro+/H265pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Support Cloud storage(One Drive, Google Drive or Drop Box)
  • Up to 8MP resolution for recording
  • HDMI output at up to 4K (3840 × 2160) resolution
  • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
  • 16-ch synchronous playback
  • Supports POS triggered recording and POS information overlay
Video/Audio Input
Audio Input:   16-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   24-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input
IP Video Input:   16-ch(up to 30ch) Up to 8MP resolution
Audio Compression:   G.711u
Audio Input Interface:   16-ch RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output:   1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI2 Output:   1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA Output:   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:   8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:   Main stream:
8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-10 Mbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
Audio Output:   2-ch, RCA (Linear, 1 kΩ)
Dual Stream:   Support
Playback Resolution:   8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:   16-ch
Network management
Remote connections:   128
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type:   8 SATA Interfaces
Capacity:   Up to 10 TB capacity for each disk
e-SATA Interface:   1 eSATA interface
Disk Array
Array Type:   RAID0, RAID1, RAID5, RAID6,RAID10
External Interface
Network Interface:   2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
USB Interface:   2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface:   1 RS-232 serial interface
1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface
Alarm Input:   16-ch
Alarm Output:   8-ch
General
Power Supply:   100 to 240 VAC
Consumption:   ≤ 74W(without hard disks)
Working Temperature:   -10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity:   10% to 90%
Dimensions:   440 × 470 × 90 mm (17.3 × 18.5 × 3.5 inch)
Weight:   ≤ 10 kg (22.0 lb)
