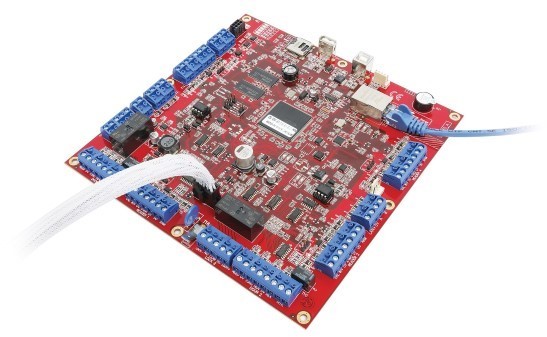

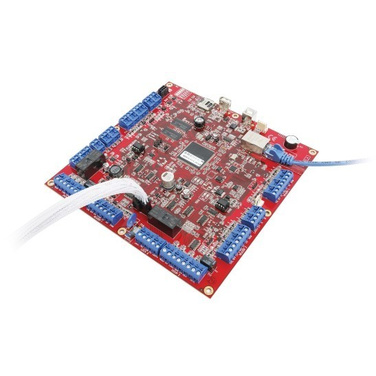

Integriti IAC (Intelligent Access Control) Controller PCB & Kit

• Integriti IAC standard capacities: 16 Doors, 100 Zones, 10,000 Users, 30,000 Events (IAC Level 0 standard option)**
• 2 door Interfaces (Lock Relays) expandable to 8 via unibus
• Reader port and encrypted RS-485, up to 16 SIFER readers
• Reader port and RS-485/OSDP, up to 16 compatible OSDP readers
• Wiegand reader ports - 4 expandable to 10 via unibus
• 2 DOTL relay outputs, expandable to 8 via unibus
• RJ45 - 10/100 Ethernet port
• SkyTunnel/Multipath-IP alarm reporting (via an RS-232 STU device)
• Peer-to-peer dialler alarm reporting (via an ISC controller)
• Advanced peer-to-peer mode
• RS-485 sub-LAN
• USB master and slave ports
• Unibus in-cabinet expansion interface
• Dedicated Watchdog output
• Dedicated tamper input
• 32 Bit ARM CPU
• 64 MB RAM
• 4 GB micro SD memory
• Hardware options card slot (smart card)
• Firmware upgrade via USB or software
• Choice of 3 amp or 8 amp power supply options
• Choice of 4 enclosure sizes
• Built-in module locater buzzer

**Where the Factory fitted Level 0 smart card is removed or replaced with a standard Level 0 smart card, the IAC will revert to 16 Doors, 100 Zones, 200 Users, 10,000 Events

• Document
• IAC & ISC Controller Comparision.pdf
• Integriti Customer Brochure.pdf
• Integriti Deployment Architecture.pdf

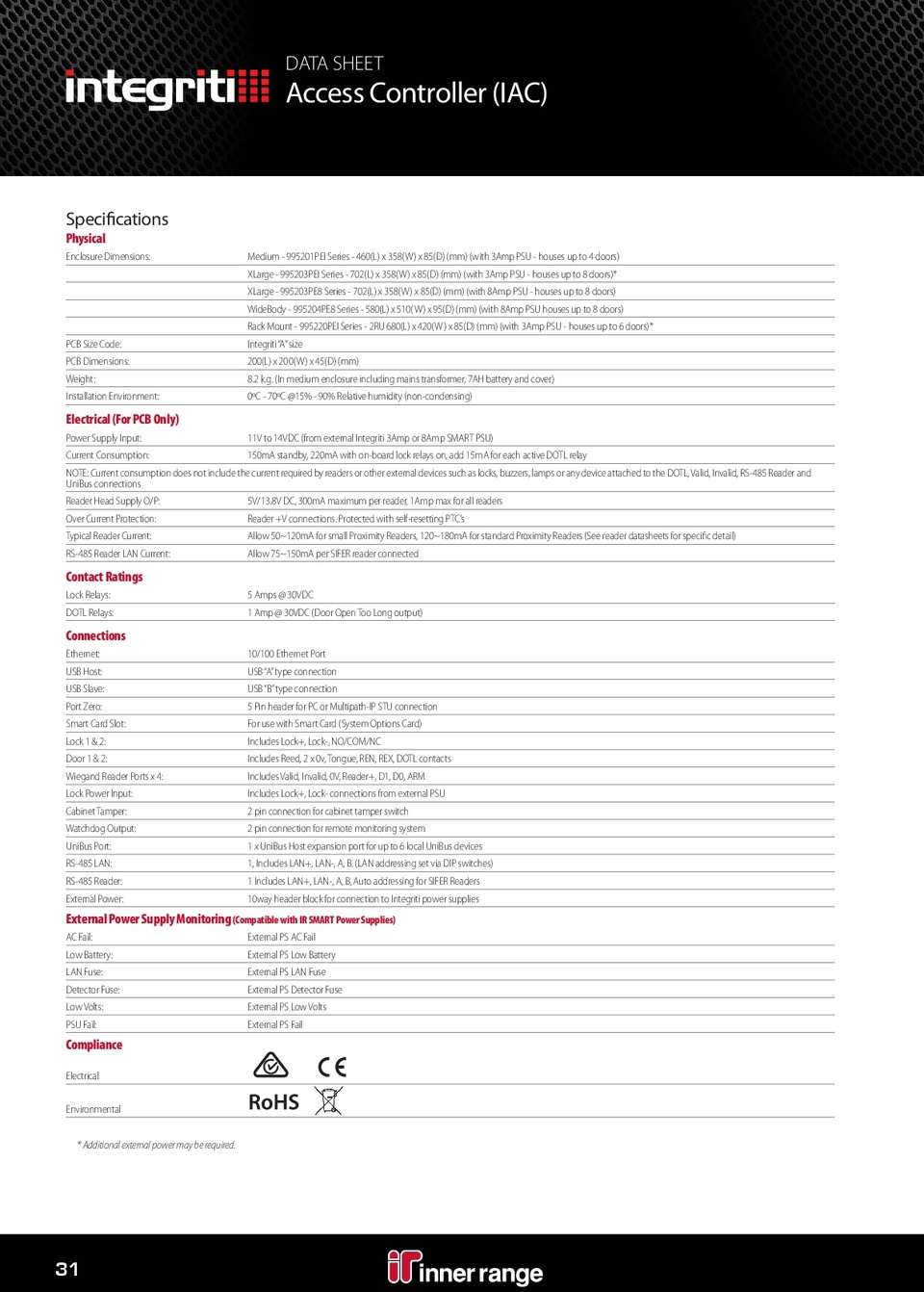

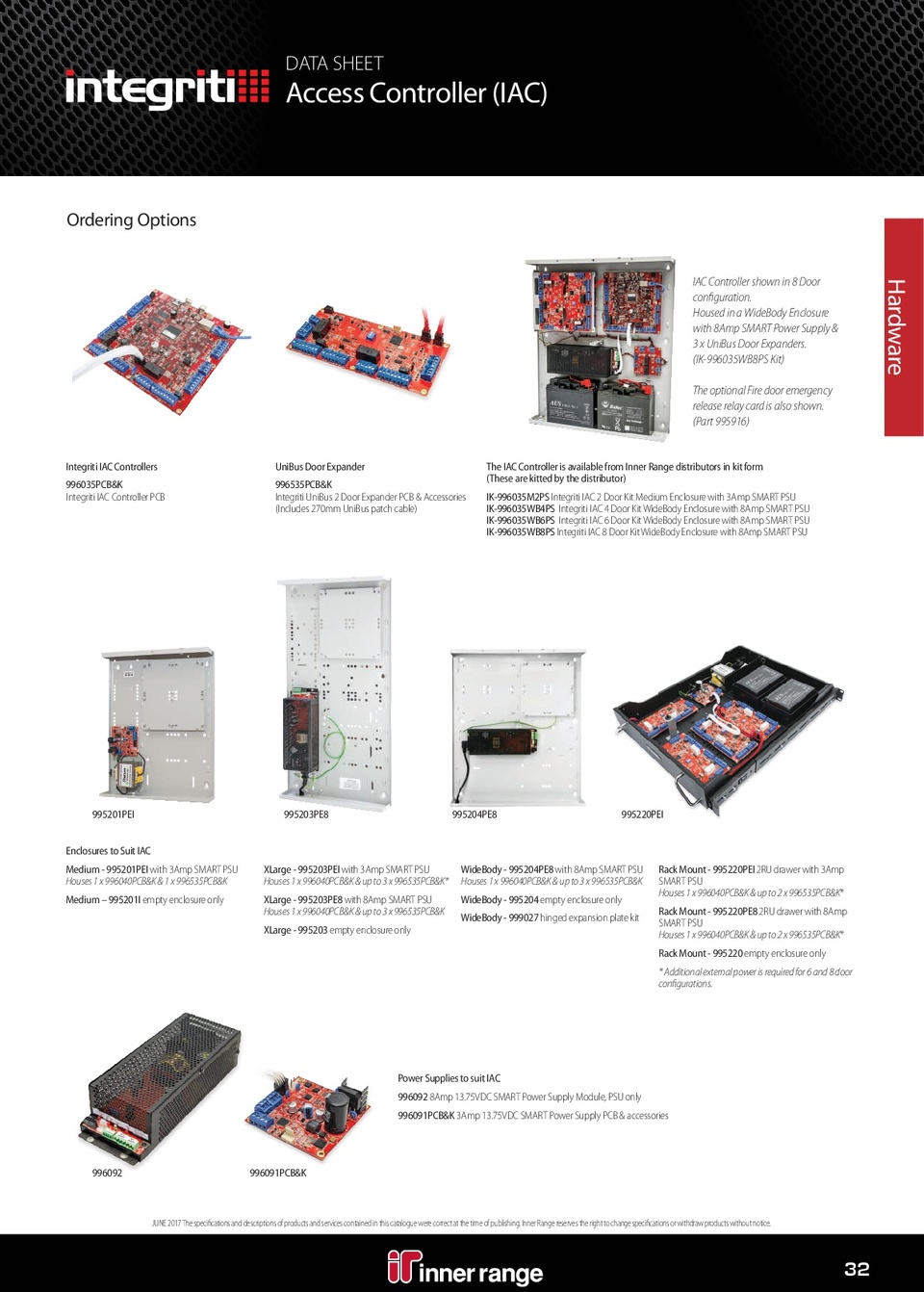

• IR-996035 Datasheet.pdf
