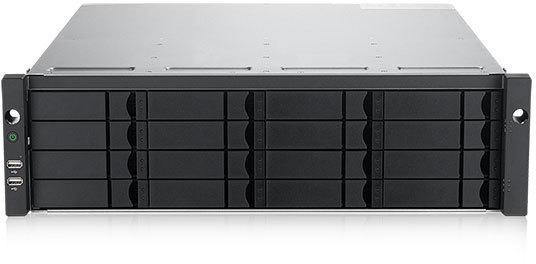

Promise Vess A6600 With 16 x 6TB Enterprise Drives

Web ID: 889

Promise Vess A6600, 16 x Enterprise Drives. Licences sold separately, Can Be Upgraded To 120 Licences Per Server Depending On Camera Parameters, Preconfigured, Includes Remote Configuration For After Sales Site Specific Requirements Such As Customization Of Motion Detection, User Accounts Etc.
Manufacturer PN: PROKIT-A6600-6TBEN
Warranty: 3 Year

Promise Vess A6600 With 16 x 6TB Enterprise Drives 0



Optimized for Video Surveillance

The Vess A6000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames.



Higher Capacity with Better Design

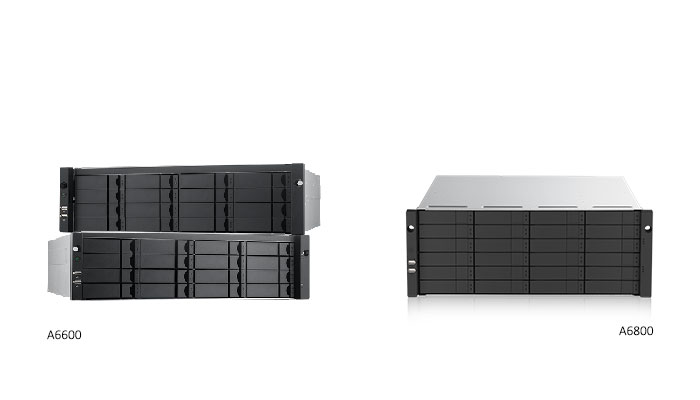

Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A6600) and 4U 24-drive (Vess A6800). Combined with Promise Technology know how creates an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD products to extend capacity without the added expense of an additional RAID server.

Promise Vess A6600 With 16 x 6TB Enterprise Drives 1

Reduces Deployment Costs and Complexity

Support and equipment costs are reduced; without a separate RAID storage unit to manage, there is no longer a need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A6000 Series reduces interoperability conflicts caused when integrating different hardware.



SMARTBOOST™ Technologies

PROMISE proprietary SMARTBOOST™ Technology provides the most stable and high performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and FRU hardware design, you have the best stability and storage performance with the best C/P ratio.



Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.



Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.



Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.



Reduce the complexity of Maintenance by OPAS

One Plug Auto Service (OPAS) is a unique feature of Promise Vess App solutions that provides user convenience, reduces complexity for maintenance, and stream- lines technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze.



Promise Vess A6600 With 16 x 6TB Enterprise Drives 2



Nx Witness VMS is a Powered-by-Nx Video Management System developed and targeted at the security surveillance and production monitoring industries. Nx Witness VMS also includes a suite of developer tools that allows system integrators to create customer-tailored IP video management solutions capable of integrating any 3rd party device or system.







PECIFICATIONS

Camera Range

1501

Form Factor

3U, 19" Rackmount

Number Of Drives

16 Drives (3.5")

Drive Type

12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”², Hot Swappable

Controller(s)

Single

System Processor

Intel Xeon E3-1275v5

System Memory

8GB Default (Max 64GB)

I/O

2x Gigabit Ethernet

Internal Storage (M.2)

128GB

Storage Expansion

Optional Promise SAS and iSCSI Storage

Max. # of HDDs Supported

Up to 136 drives through iSCSI/SAS JBOD expansion

USB Ports

4x USB 3.0, 2x USB 2.0

PCI Express Ports

1x8-lane gen3

Graphics

D-sub x 1, DVI x 1, HDMI x 1

Audio I/O

5x 3.5 mm + 1x SPDIF Audio Jack

RAID Levels

0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60. Any combination can exist at the same time

Hot Spares

Multiple global or dedicated hot-spare drives with revertible option

Max LUNs per system/array

256/32

Supported OS (64-bit)

Windows 10, Windows 2016

Management Tools/Interface

Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration

Appliance Mode

Surveillance Optimization @ Arrays in Normal and Degrade

Event Notification

Email, SNMP, Buzzer, LEDs

AC Input

100 ~ 240V AC, 60 ~ 50Hz

Current (Maximum)

8-4A

Power Supply

Redundant 550W for each power, Hot swappable N+1 Design (80 PLUS certified)

System Controller

Replaceable FRU design

Temperature Range

5° ~ 40°C (-40° ~ 60°C non-operational)

Dimensions

131 x 503 x 447 mm (5.1 x 19.8 x 17.6 in)

Weight

System W/O HDD: 16.11kg
System W/ HDD: 26.84kg
