Bosch 6000 LAN 5 amp Power Supply + 2 x Battery Charger
Web ID: 170

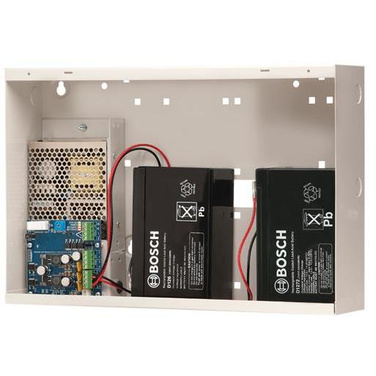

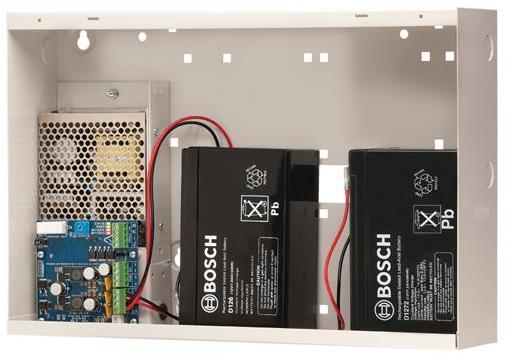

5 Amps total combined output current. Charge up to 2 x 7.2Ah or 1 x 18Ah standby batteries. Remotely interrogate power supply status via RAS. Resettable fuse protected with deep discharge protection built-in. Easily installed into MW730 large enclosures. * Does not include batteries or cabinet as pictured
Manufacturer PN: CM723B
Warranty: 1 Year
Manufacturer Website
$365
| Power Requirements | |
| Voltage Input | 100-240V AC @ 2.0A 50-60Hz |
| Stand-By Battery | Up to 2 x 12V DC, 7.2AH sealed rechargeable battery. Resettable Fuse Protected @ 6 Amps |
| Voltage Output | 13.8V DC @ 5 Amps (Primary supply source only) |
| Battery Discharge Cycle | AC Off: Keypads indicate trouble condition, AV Fail report resent (if programmed)13.8V DC :Charging level11.5V DC: Low battery trouble at keypads, low battery report sent (if programmed)10.0V: DC Shut down and battery disconnected as voltage falls below 9V DC. |
| Battery Recharge Cycle | AC On: Panel restarts, battery charging begins. AC trouble clears from keypads, AC restore report sent (if programmed).12.8V DC: Battery trouble clears from keypads, battery restore report sent (if programmed).13.8V DC: Battery float charged. |
| Connections | |
| Module Connection (RS485 LAN) | Max total LAN length using multi strand security cable = 300mMax total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m |
| Environmental Considerations | |
| Temperature | 0° to 55°C |
| Humidity | 5 % to 85 % at 30°C non condensing |
| Enclosure | |
| Dimensions | 50(W) x 23(D) x 58(H)mm |
| Warranty: | 3 years |
