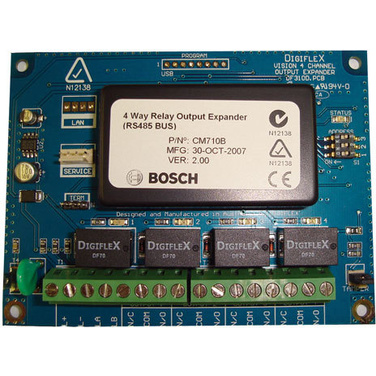

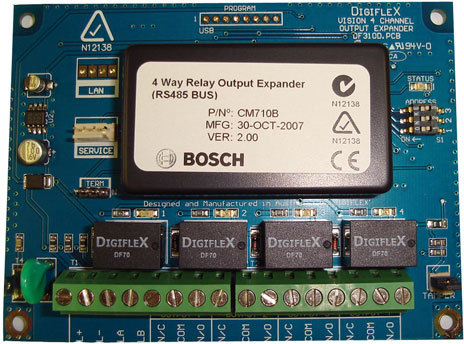

Bosch CM710B 4 Way Relay Output Module for 6000 Panel
Web ID: 168
4 x Form C relay contacts. LAN monitored, Status LED. Service code pad connection. Separate tamper input. Automatic recognition by panel
Manufacturer PN: CM710B
Warranty: 3 Year
Manufacturer Website
$208
| Voltage | 10.5 to 14VDC |
| Current | 30mA Standby, 200mA Max (all relays and LEDs operated) |
| Outputs | 4 x Form C Relay outputs – contacts rated at 24VD C at 2A MAX |
| Cable | Max total LAN length using multi stranded security cable = 300m Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1500m |
| Temperature | 0° to 55°C |
| Humidity | 5 % to 85 % at 30°C non condensing |
| Warranty: | 3 years |
