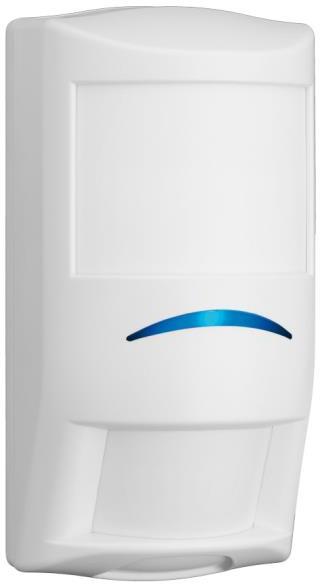

Bosch Pro Series PIR 16m x 21m Coverage
Web ID: 327
Bosch Pro Series PIR 16m x 21m Coverage
Manufacturer PN: ISC-PPR1-W16
Warranty: 3 Year
Manufacturer Website
$109
16 m x 21 m (50 ft x 70 ft) coverage, selectable to 8 m x 10 m (25 ft x 33 ft)
EN50131-2-2 Grade 2 and VdS G107504 Class B compliant
Sensor data fusion technology
Tri-focus optics technology
Active white light suppression
Dynamic temperature compensation
Remote walk test
Alarm memory
Draft and insect immunity
2 m to 3 m (7 ft to 10 ft) mounting height, no adjustments required
| Power Requirements | |
| Voltage (Operating) | 9 VDC to 15 VDC |
| Current (Maximum) | < 15 mA |
| Current (Standby): | < 10 mA at 12 VDC |
| Relay | Solid state relay, normally-closed (NC) contacts, power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω |
| Tamper | Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit. |
| Enclosure | |
| Colour | White |
| Dimensions: | 127 mm x 69 mm x 58 mm |
| Material | High-impact ABS plastic |
| Indicators | |
| Alarm Indicator | Blue alarm LED |
| Zones | 86 |
| Environmental Considerations | |
| Relative Humidity: | 0 to 95%, non-condensing |
| Temperature | -29°C to +55°C For UL Certificated installations, 0°C to +49°C Environmental Class II EN 50130-5 |
| Protection Rating | IP41, IK04 (EN 60529, EN 50102 |
| Warranty: | 3 years |
