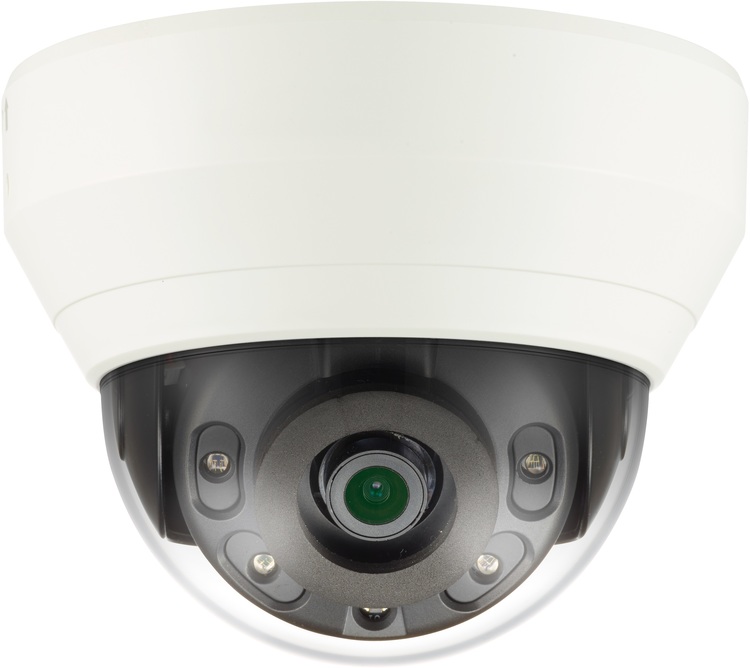

Hanwha Wisenet Q Series QND-7010R 4MP Internal Fixed Lens Dome With IR & 2.8mm Lens
Web ID: 665
The QND-7010R from Hanwha's Q Series affordable network camera line is a 4MP indoor dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Manufacturer PN: QND-7010R
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
QND-7010R
Hanwha Wisenet Q Series 4MP Internal Fixed Lens Dome With IR & 2.8mm Lens
Key Features
- Max. 4M resolution
- Built-in 2.8mm fixed lens
- Max. 20fps@4M resolutions, Max. 30fps@2M resolutions
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m, IK08
- Hallway view, WiseStream support
- LDC support (Lens Distortion Correction)
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | QND-7010R |
| Series | WISENET Q SERIES |
| Chip Inch Size | 1/3 |
| Colour Type | True Day / Night |
| Resolution TVL | 4MP |
| HD | Yes |
| Megapixel | Yes |
| Sensitivity lux | 0 ~ 0.5 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 12 V DC, PoE Power Consumption: 5.8 ~ 7 W |
| Focal length | 2.8mm |
| Compression | H.265, H.264, MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Built-in IR LED | Yes |
| Network Properties | Interface: RJ-45 (10/100BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 15 ~ 30 fps |
| Physical Specifications | Dimensions mm: 110 x 86 Weight g: 290 |
| Environmental Specifications | Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 0 ~ 90 Protection: IK08 |
| System Requirments | Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Web Browser: Google Chrome 47, MS Edge 20 |
| Additional info |
|
