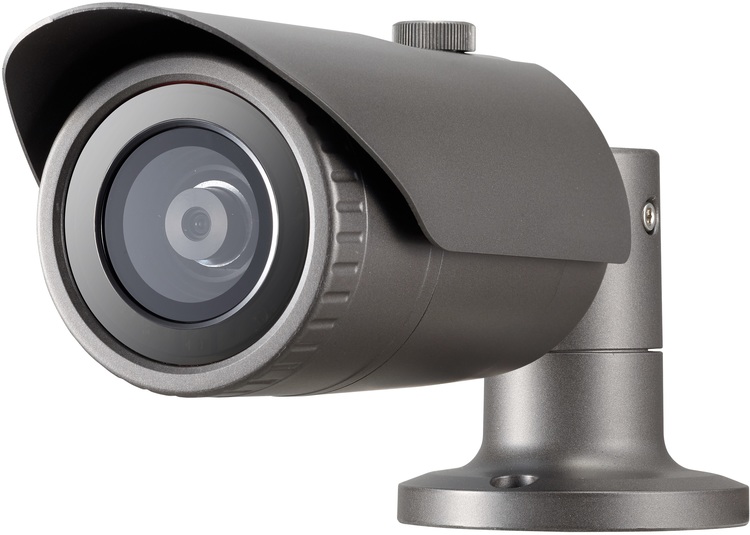

Hanwha Wisenet Q Series QNO-7020R 4MP Outdoor Bullet Camera With IR & 3.6mm Lens
Web ID: 673
The QNO-7020R from Hanwha's Q Series affordable network camera line is a 4MP bullet network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Manufacturer PN: QNO-7020R
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
QNO-7020R
Hanwha Wisenet Q Series 4MP Outdoor Bullet Camera With IR & 3.6mm Lens
Key Features
- Max. 4M resolution
- Built-in 3.6mm fixed lens
- Max. 20fps@4M resolutions, Max. 30fps@2M resolutions
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m (QNO-7010R), 25m (QNO-7020R)
30m (QNO-7030R) - Hallway view, WiseStream support, IP66, IK10
- LDC support (Lens Distortion Correction)
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | QNO-7020R |
| Series | WISENET Q SERIES |
| Chip Inch Size | 1/3 |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP |
| Digital (DSP) | Yes |
| Specialist Type | Infrared |
| Sensitivity Lux | 0 ~ 0.4 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications | Voltage: 12 V DC, PoE Power Consumption: 7W |
| Focal Length mm | 3.6 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 2688 x 1520 |
| Network Properties | Image Frame Rate: 30 fps Interface: RJ-45 (10/100BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Compression Type | H.265, H.264, MJPEG |
| Physical Specifications | Dimensions mm: 70 x 246 Weight g: 730 |
| Environmental Specifications | Protection: IP66, IK10 Operating Temperature oC: -30 ~ +55 C (-22 ~ +131 F) Operating Humidity %: < 90 |
| System Requirements | Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Web Browser: Google Chrome 47, MS Edge 20, MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only |
| Additional info |
|
