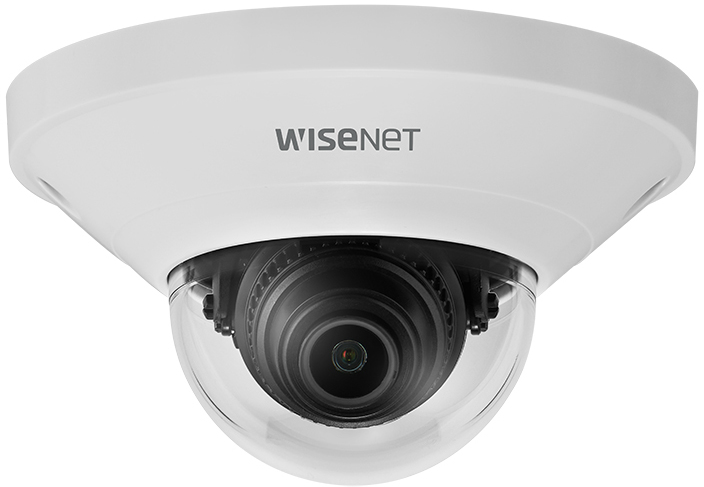

Hanwha Wisenet QND-8011 5MP Mini Indoor Camera With HDMI & 2.8mm Lens
Web ID: 948
Hanwha's 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the Hanwha QND-8011 can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Lens distortion correction easily removes imperfections in images, making image quality impeccable. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The Hanwha QND-8011 offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.
Manufacturer PN: QND-8011
Warranty: 3 Year
Manufacturer Website
-
Video Imaging Device 1/2.8" 5MP CMOS Effective Pixels 2592(H)x1944(V) Min. Illumination Color: 0.15Lux(F2.0, 1/30sec) Video Out HDMI: 1080p@30/25fps(60/50Hz) Lens Focal Length (Zoom Ratio) 2.8mm fixed focal Max. Aperture Ratio F2.0 Angular Field of View H: 104.4°/ V: 76.7°/ D: 136.1° Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~350° / 0°~69° / 0°~355° Operational Camera Title Displayed up to 85 characters Day & Night Auto(Electrical) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Motion detection, Tampering Business Intelligence People counting Alarm Triggers Analytics, Network disconnect Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggersNetwork Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Resolution 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)Smart Codec WiseStream? Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformWeb Viewer Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly)Memory 512MB RAM, 256MB Flash Environmental Operating Temperature / Humidity -10°C ~ +40°C(-14°F ~ +104°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH Certification IP42, IK08 Electrical Input Voltage PoE(IEEE802.3af, Class2) Power Consumption PoE: Max 5.00W, typical 4.00W Mechanical Color / Material White / Plastic RAL Code RAL9003 Product dimensions / weight Ø99.0x56.0mm(Ø3.9x2.2"), 165g(0.36 lb) DORI Detect 40.2m(131.93ft) Observe 16.1m(52.77ft) Recognize 8.0m(26.39ft) Identify 4.0m(13.19ft) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin.
