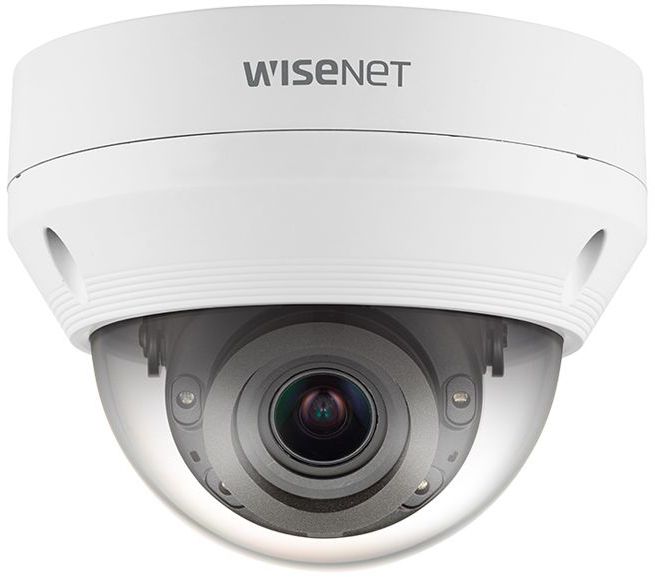

Hanwha Wisenet QNV-8080R 5MP IR Vandal Dome Camera With Motorised Lens

Hanwha Wisenet QNV-8080R 5MP IR Vandal Dome Camera With Motorised Lens

Web ID: 958

Hanwha's 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the QNV-8080R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The Hanwha QNV-8080R offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.
Manufacturer PN: QNV-8080R
Warranty: 3 Year

Got a Question?

QNV-8080R
Hanwha Wisenet 5MP IR Vandal Dome Camera With Motorised Lens

Key Features

  • Max. 5MP resolution
  • 3.2 - 10mm motorised varifocal lens
  • Max. 30fps at 5MP
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & night, WDR (120dB)
  • Motion detection, tampering, defocus detection
  • 30m IR
  • Hallway view support, Wisestream II support
  • Video
    Imaging Device 1/2.8" 5MP CMOS
    Effective Pixels 2592(H)x1944(V)
    Min. Illumination Color: 0.15Lux(F1.6, 1/30sec)
    BW: 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    Lens
    Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
    Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
    Angular Field of View H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele)
    Focus Control Simple focus
    Lens Type DC auto iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
    Operational
    IR Viewable Length 30m(98.42ft)
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR
    Motion Detection 4ea, polygonal zones
    Privacy Masking 6ea, rectangular zones
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Resolution 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 15fps/12fps(60Hz/50Hz)
    Smart Codec WiseStream?
    Video Quality Adjustment H.264/H.265: Target bitrate level control
    MJPEG: Quality level control
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
    Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
    Recommended Browser: Google Chrome
    Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Memory 512MB RAM, 256MB Flash
    Environmental
    Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
    * Start up should be done at above -20°C
    Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10
    Electrical
    Input Voltage PoE(IEEE802.3af, Class3)
    Power Consumption PoE: Max 8.90W, typical 6.60W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product dimensions / weight Ø137.0x106.1mm(Ø5.39x4.18"), 700g(1.54 lb)
    DORI
    Detect Wide: 43.3m(141.96ft) / Tele: 185.7m(609.15ft)
    Observe Wide: 17.3m(56.78ft) / Tele: 74.3m(243.66ft)
    Recognize Wide: 8.7m(28.39ft) / Tele: 37.1m(121.83ft)
    Identify Wide: 4.3m(14.20ft) / Tele: 18.6m(60.92ft)
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin.
