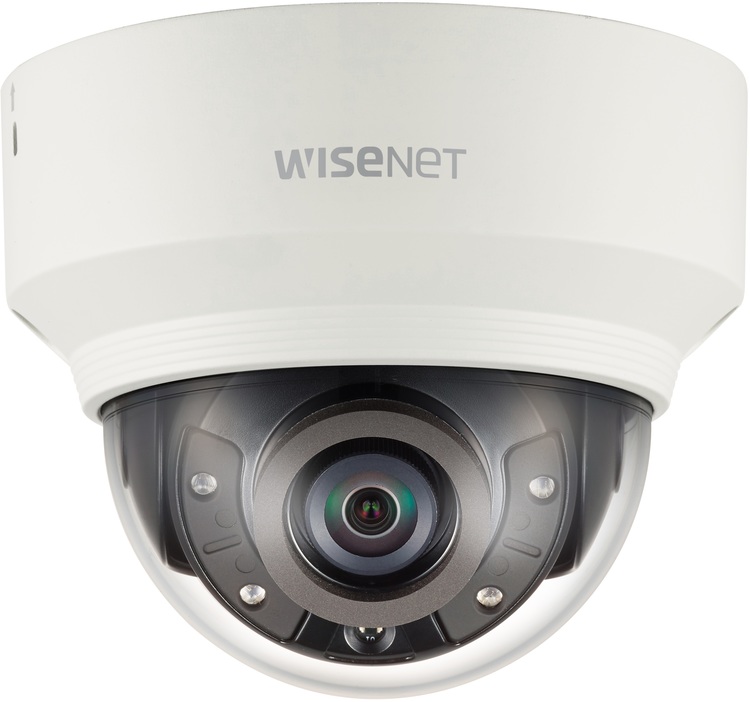

Hanwha Wisenet X Series XND-8020R 5MP Internal Dome Camera With IR & 3.7mm Lens
Web ID: 734
WiseNet X powered by WiseNet 5 network IR indoor dome camera, 5MP @30fps WDR off/on, 3.7mm fixed focal lens (97.5), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IK08 rated
Manufacturer PN: XND-8020R
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
XND-8020R
Hanwha Wisenet X Series 5MP Internal Dome Camera With IR & 3.7mm Lens
Key Features
- Max. 5megapixel (2560 x 1920) resolution
- Built-in 3.7mm fixed lens (XND-8020R)
4.6mm fixed lens (XND-8030R)
7mm fixed lens (XND-8040R) - Max. 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
- Hallway view, WiseStream II support
- IR viewable length 30m, IK08
- LDC support (Lens Distortion Correction)
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | XND-8020R |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/2 |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 5MP |
| Megapixel | Yes |
| Sensitivity lux | 0 ~ 0.16 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 12 V DC, PoE Power Consumption: 8 ~ 9 W |
| Focal length | 3.7 mm |
| Compression | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 2 ~ 1/12,000sec |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Network Properties | Interface: RJ-45 (10/100 BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 30 fps |
| Physical Specifications | Dimensions mm: 110 x 90 Weight g: 380 |
| Environmental Specifications | Operating Temp oC: -10 ~ +55 C (14 ~ +131 F) Operating Humidity %: < 90 Protection: IK08 |
| System Requirments | Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 9 * Mac OS X only |
