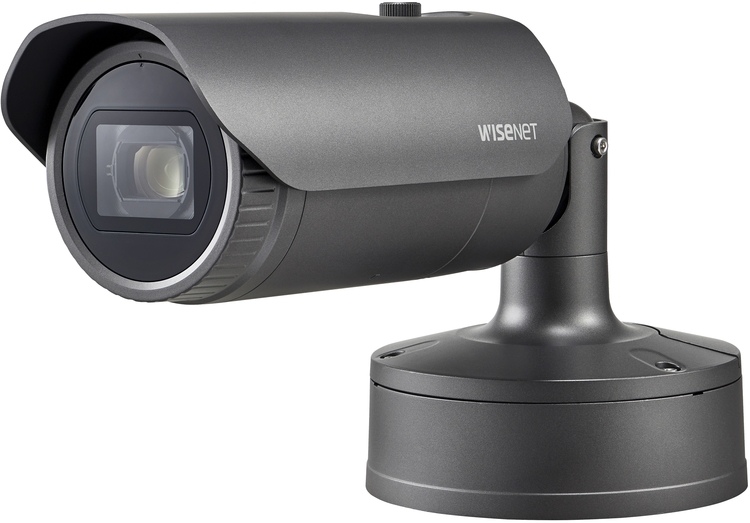

Hanwha Wisenet X Series XNO-6120R 2MP Outdoor Bullet With IR & Vari Focal Lens
Web ID: 738
Wisenet X powered by Wisenet 5 network IR outdoor bullet camera, 2MP, Full HD(1080p) @60fps WDR off/on(120dB) or @30fps WDR on(150dB), 12X optical zoom lens (5.2mm ~62.4mm) (54.58 ~ 5.30), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 229', true D/N, dual SD card, hallway view, HLC, Defog detection, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40F heater
Manufacturer PN: XNO-6120R
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
XNO-6120R
Hanwha Wisenet X Series 2MP Outdoor Bullet With IR & Vari Focal Lens
Key Features
- Max. 2Megapixel (1920 x 1080) resolution
- 5.2 ~ 62.4mm (Optical 12X) Optical Lens
- Max. 60fps@all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG Codec Supported, Multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- IVA, Fog Detection, Sound Classification, Tampering
- Motion Detection, Handover
- SD / SDHC / SDXC 2 Slot (Max. 512GB)
- Hallway View, WiseStreamII Support
- IR Viewable Length 70m (229.66ft)
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | XNO-6120R |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/3 |
| Colour Type | Colour / Monochrome |
| Resolution | 2MP |
| Digital (DSP) | Yes |
| Specialist Type | Infrared |
| Sensitivity Lux | 0 ~ 0.03 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications | Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 12.5 ~ 14.5 W |
| Focal Length mm | 5.2 ~ 62.4 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1,945 x 1,097 |
| Network Properties | Image Frame Rate: 60 fps Interface: RJ-45 (10/100 BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 2 ~ 1/12,000sec |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Zoom | Yes |
| Compression Type | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Physical Specifications | Dimensions mm: 91 x 369 Weight g: 2180 |
| Environmental Specifications | Protection: IP67, IP66, IK10 Operating Temperature oC: -40 ~ +55C (-40 ~ +131 F) Operating Humidity %: < 90 |
| System Requirements | Operating System: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12 Web Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only) |
| Additional info |
|
