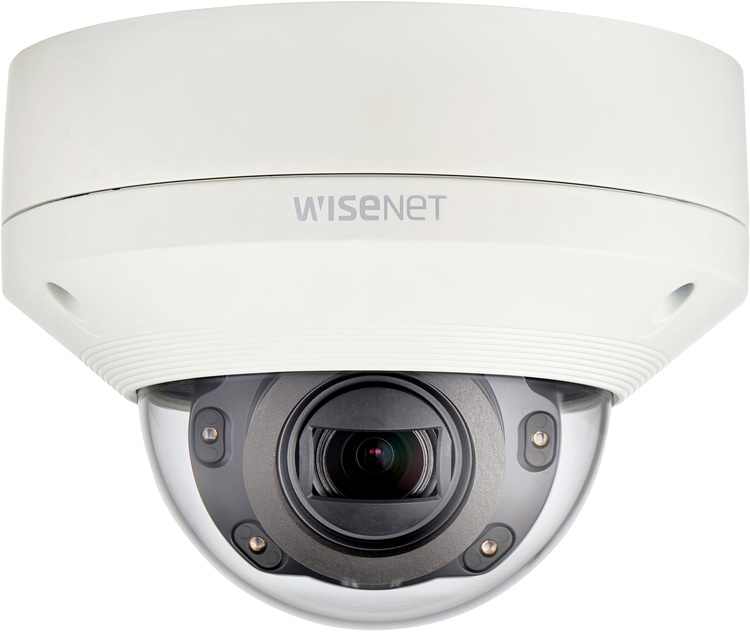

Hanwha Wisenet X Series XNV-6080R 2MP Outdoor Vandal Dome With IR & Motorised Lens
Web ID: 745
Hanwha Wisenet X Series XNV-6080R 2MP Outdoor Vandal Dome With IR & Motorised Lens
Manufacturer PN: XNV-6080R
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
XNV-6080R
Hanwha Wisenet X Series 2MP Outdoor Vandal Dome With IR & Motorised Lens
Key Features
- Max. 2megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, Bi-directional audio support
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | XNV-6080R |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/3 |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 2MP |
| Megapixel | Yes |
| Sensitivity lux | 0 ~ 0.015 |
| Digital (DSP) | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Electrical Specifications | Voltage: 12 V DC / 24 V AC / PoE Power Consumption: 11.5 ~ 14 W |
| Focal length | 2.8 ~ 12mm |
| Compression | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 2 ~ 1/12,000sec |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Network Properties | Interface: RJ-45 (10/100BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 60 fps |
| Physical Specifications | Dimensions mm: 160 x 119 Weight g: 995 |
| Environmental Specifications | Operating Temp oC: -40 ~ +55 C (-40 ~ +131 F) Operating Humidity %: < 90 Protection: IP67, IP66, IK10 |
| System Requirments | Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only |
| Additional info |
|
