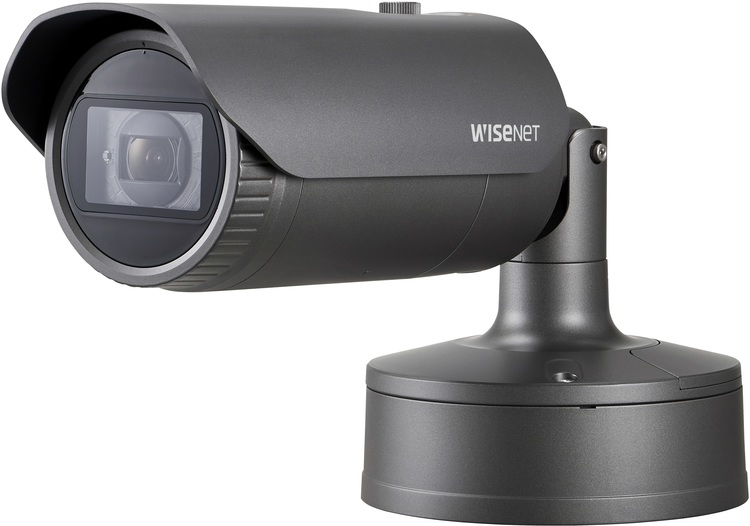

Hanwha Wisenet XNO-6080R 2MP Outdoor Bullet Camera With IR & Vari Focal Lens
Web ID: 775
With cutting-edge WDR technology, the Hanwha HAN-XNO-6080R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNO-6080R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNO-6080R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
Manufacturer PN: XNO-6080R
Warranty: 3 Year
Manufacturer Website
XNO-6080R
Hanwha Wisenet 2MP Outdoor Bullet Camera With IR & Vari Focal Lens
Key Features
- Max. 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStreamII support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, Bi-directional audio support
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | XNO-6080R |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/3 |
| Colour Type | Colour / Monochrome |
| Resolution | 2MP |
| Digital (DSP) | Yes |
| Specialist Type | Infrared |
| Sensitivity Lux | 0 ~ 0.015 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications | Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 12 ~ 15 W |
| Focal Length mm | 2.8 ~ 12 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1945 x 1097 |
| Network Properties | Image Frame Rate: 60 fps Interface: RJ-45 (10/100 BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 2 ~ 1/12,000sec |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Zoom | Yes |
| Compression Type | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Physical Specifications | Weight g: 2180 Dimensions mm: 91 x 369 |
| Environmental Specifications | Protection: IP67, IP66, IK10 Operating Temperature oC: -40 ~ +55C (-40 ~ +131 F) Operating Humidity %: < 90 |
| System Requirements | Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only |
| Additional info |
|
