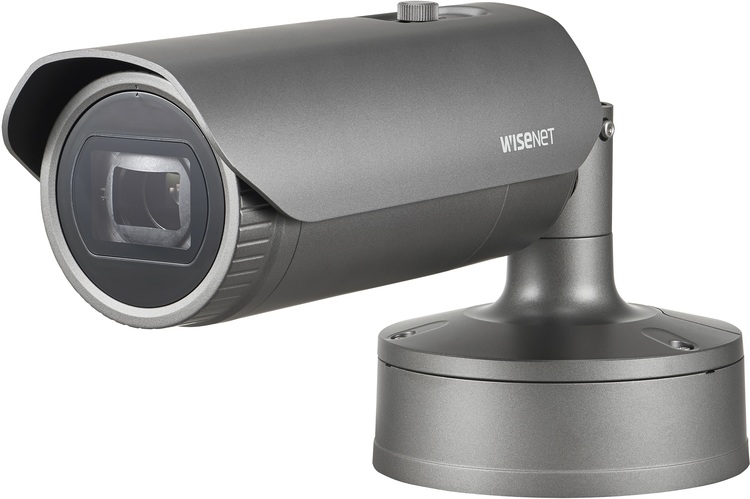

Hanwha Wisenet XNO-6085R 2MP Outdoor Bullet Camera With IR & Vari Focal Lens
Web ID: 776
With cutting-edge WDR technology, the Hanwha HAN-XNO-6085R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNO-6085R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNO-6085R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
Manufacturer PN: XNO-6085R
Warranty: 3 Year
Manufacturer Website
XNO-6085R
Hanwha Wisenet 2MP Outdoor Bullet Camera With IR & Vari Focal Lens
Key Features
- Max 2MP @ 60fps
- Motorized vari-focal 4.1~ 16.4mm (FOV: 100°~26.2°)
- ½” CMOS sensor with F0.94 Lens (wide)
- Built-in IR with 229’ range or 70m
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @30fps, 120dB @60fps
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Hallway view, sound classification
- Dual SD cards
- Gyro sensor for digital image stabilization
- IP66/67 NEMA 4X, IK10
- Power: PoE or 12VDC/24VAC
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | XNO-6085R |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/2 |
| Colour Type | Colour / Monochrome |
| Resolution | 2MP |
| Digital (DSP) | Yes |
| Specialist Type | Megapixel |
| Sensitivity Lux | 0 ~ 0.004 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications | Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 11.5 ~ 14.5 W |
| Focal Length mm | 4.1 ~ 16.4mm |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1952 x 1113 |
| Network Properties | Image Frame Rate: 30 ~ 60 fps Interface: RJ-45 (10/100 BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 2 ~ 1/12,000s |
| Y/ C (Video Output) | 1.0 Vpp / 75Ω composite |
| Compression Type | H.264, MPEG4, MJPEG |
| Physical Specifications | Dimensions mm: 91 x 389 Weight g: 2,350 |
| Environmental Specifications | Protection: IP66, IP67, IK10 Operating Temperature oC: -40 ~ +55 C (-40 ~ +131 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Operating System: Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 61 (Window 64bit only), Apple Safari 10 (Mac OS X only) |
