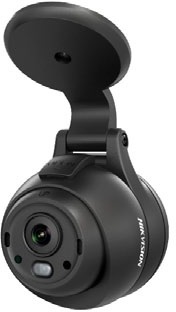

Hikvision AE-VC161T-ITS HDTVI Mobile Camera Dual 2.1mm Lens
Web ID: 763
Hikvision AE-VC161T-ITS HDTVI Mobile Camera Dual 2.1mm Lens
Manufacturer PN: AE-VC161T-ITS
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
AE-VC161T-ITS
HDTVI Mobile Camera Dual 2.1mm Lens
Key Features
- 0.1Lux @(F1.2,AGC ON), 0 Lux with IR (IR function is only supported by back sight camera)
- Analog HD output, up to 720P resolution
- Support electronic Day/Night switch
- Adopt bi-lens with wider monitoring coverage
- Support electronic shutter and AGC
- Built-in microphone
- Patented universal regulating mechanism, easy to adjust
- Anti-vibration design and aviation port for mobile environments
- Suitable for mobile environments
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.1Lux @ (F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | Fore Sight: 2.1mm,2.8mm Back Sight: 2.1mm | |
| Lens Mount: | M12 | |
| Adjustment Range: | Fore Sight: Bracket Angle Adjustment Range: 0° to 90° Back Sight: Pan: 0°to 360°; Tilt:0°to 60°; Rotation: 0°to 360° | |
| Day& Night: | Electronic | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB |
| Menu | ||
|---|---|---|
| AGC: | Support | |
| Interface | ||
|---|---|---|
| Audio In: | Built-in Microphone | |
| Audio Out: | 2-ch, Aviation Port (Output Impedance: 1KΩ±10%) | |
| Video Out: | 2-ch, Aviation Port (1Vpp Composite Output) | |
| General | ||
|---|---|---|
| Operation Condition: | -30°C to 65°C (-22°F to 149°F), Humidity 90% or less (non-condensing) | |
| Power Supply: | 6VDC to 16VDC | |
| Power Consumption: | MAX. 4W | |
| Dimension: | 59.9mm×85.6mm×80mm (2.36"×3.37″×3.15″) | |
| Weight: | Approx. 400g (0.88lb) | |
