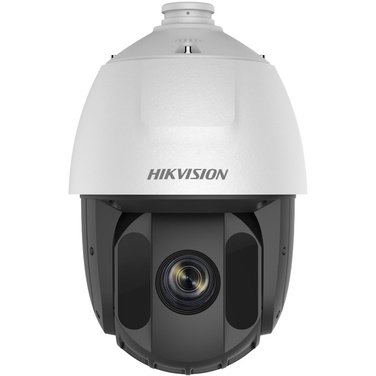

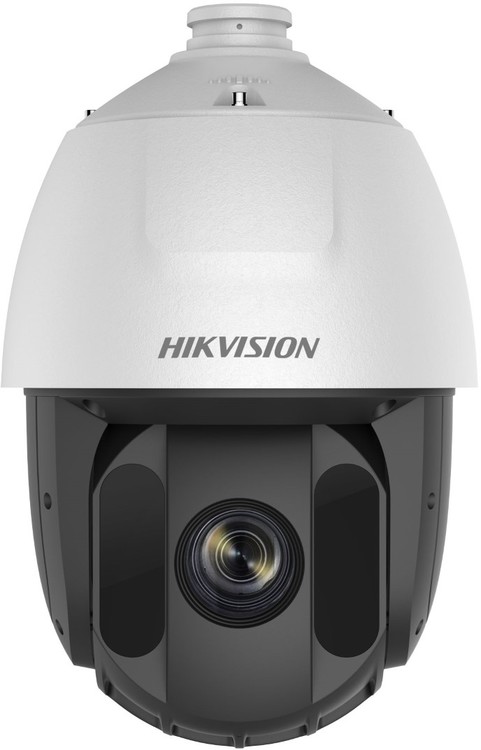

Hikvision DS-2AE5225TI-A 2MP HDTVI PTZ With 150m IR & 25x Zoom Lens
Web ID: 920
The Hikvision DS-2AE5225TI-A turbo speed dome is able to capture high quality images in low light environments with its black anti-reflective glass. This glass increases the luminousness which can reach up to 150m IR distance. Through the embedded 1/2.8" HD progressive scan CMOS chip, 120dB WDR and real-time 1920 x 1080 resolution become possible. With the 25x optical zoom and IR cut filter, this camera offers variety of features over a range of areas.
Manufacturer PN: DS-2AE5225TI-A
Warranty: 3 Year
Manufacturer Website
$666
DS-2AE5225TI-A
2MP HDTVI PTZ With 150m IR & 25x Zoom Lens
Key Features
- 1/2.8" HD progressive scan CMOS
- 1920 x 1080 resolution
- 25x optical zoom, 16x digital zoom
- 120 dB true WDR (wide dynamic range)
- Up to 150 m IR distance
- 3D intelligent positioning
- Switchable TVI/AHD/CVI/CVBS video outputs
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR | |
| White Balance: | Auto / Manual / ATW / Indoor / Outdoor | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| WDR: | ≥ 120 dB | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Mask: | 8 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 120 mm, 25× Optical | |
| Zoom Speed: | Approx. 3.6 s (optical, wide to tele) | |
| Field of View: | Horizontal field of view: 57.6° to 2.5° (wide to tele) Vertical field of view: 34.4° to 1.4° (wide to tele) Diagonal field of view: 64.5° to 2.9° (wide to tele) | |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) | |
| Aperture Range: | F 1.6 to F 3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan manual speed: 0.1° to 120°/s Pan preset speed: 120°/s | |
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR Distance: | 150m | |
| IR irradiation angle: | Adjustable by zoom | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Output: | 1 | |
| Input & Output | ||
|---|---|---|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) | |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Language: | English | |
| Power Supply: | 24V AC | |
| Power Consumption: | Max. 30 W (IR:10 W) | |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less | |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Dimensions: | Ø 208 mm × 305 mm (Ø 8.19" ×12.01") | |
| Weight (approx.): | 3.3 kg (7.28 lb.) | |
Accessories:
