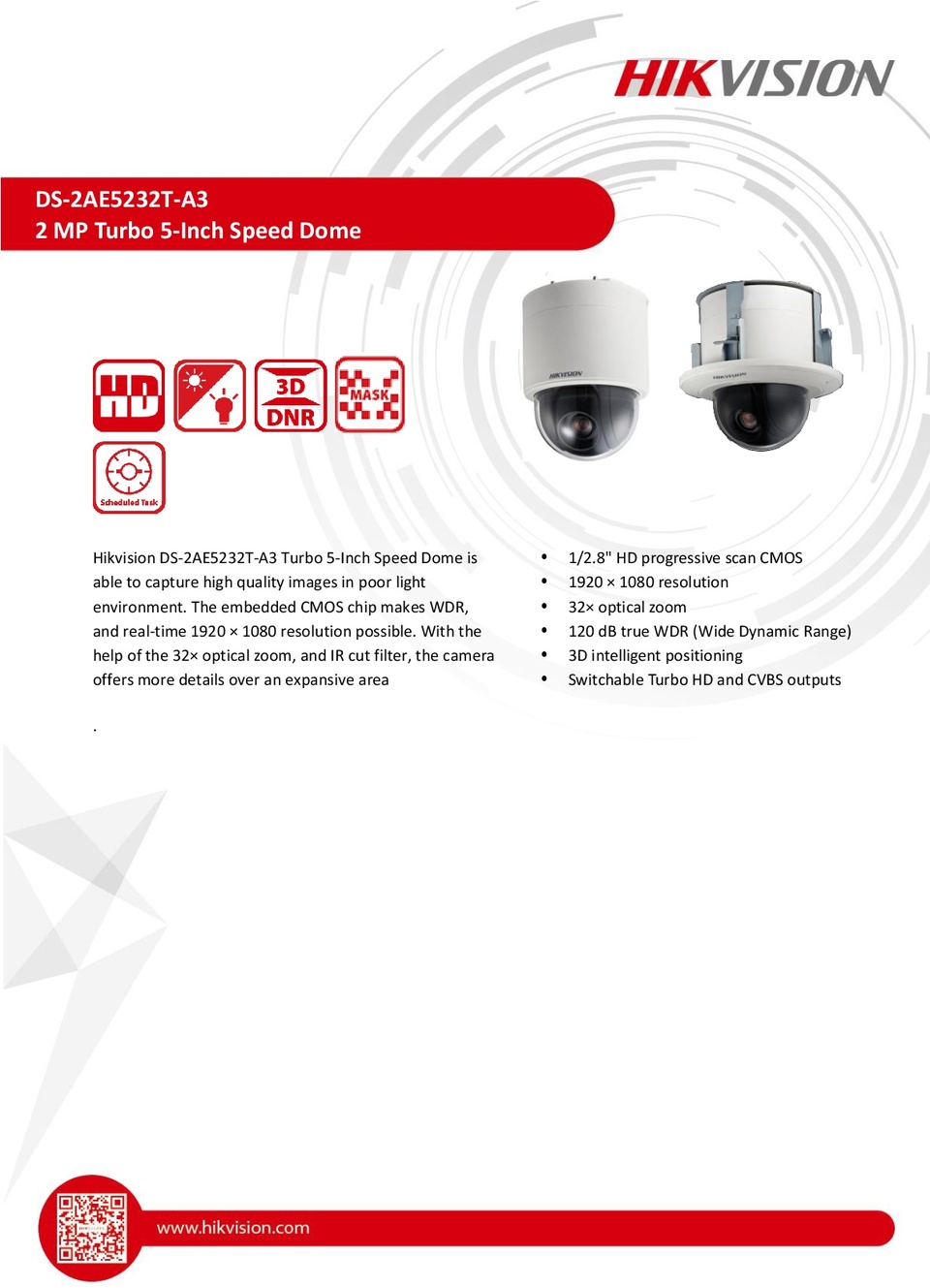

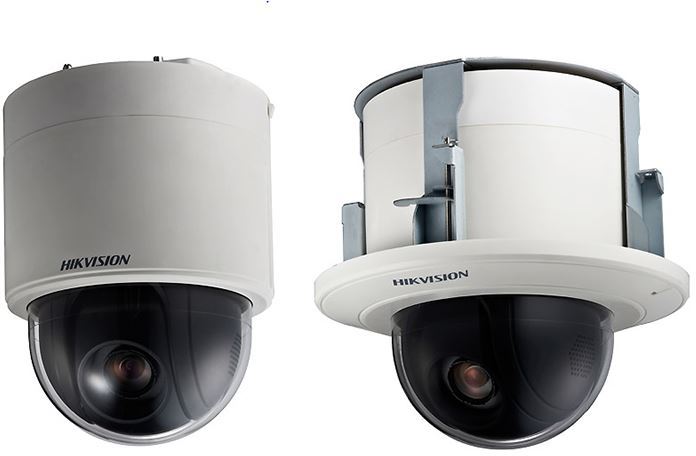

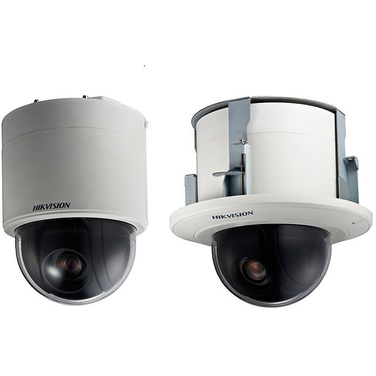

Hikvision DS-2AE5232T-A3 HD-TVI 2MP PTZ Camera With 32X Optical Zoom
Web ID: 437
Hikvision DS-2AE5232T-A3 HD-TVI 2MP PTZ Camera With 32X Optical Zoom
Manufacturer PN: DS-2AE5232T-A3
Warranty: 3 Year
Manufacturer Website
$946

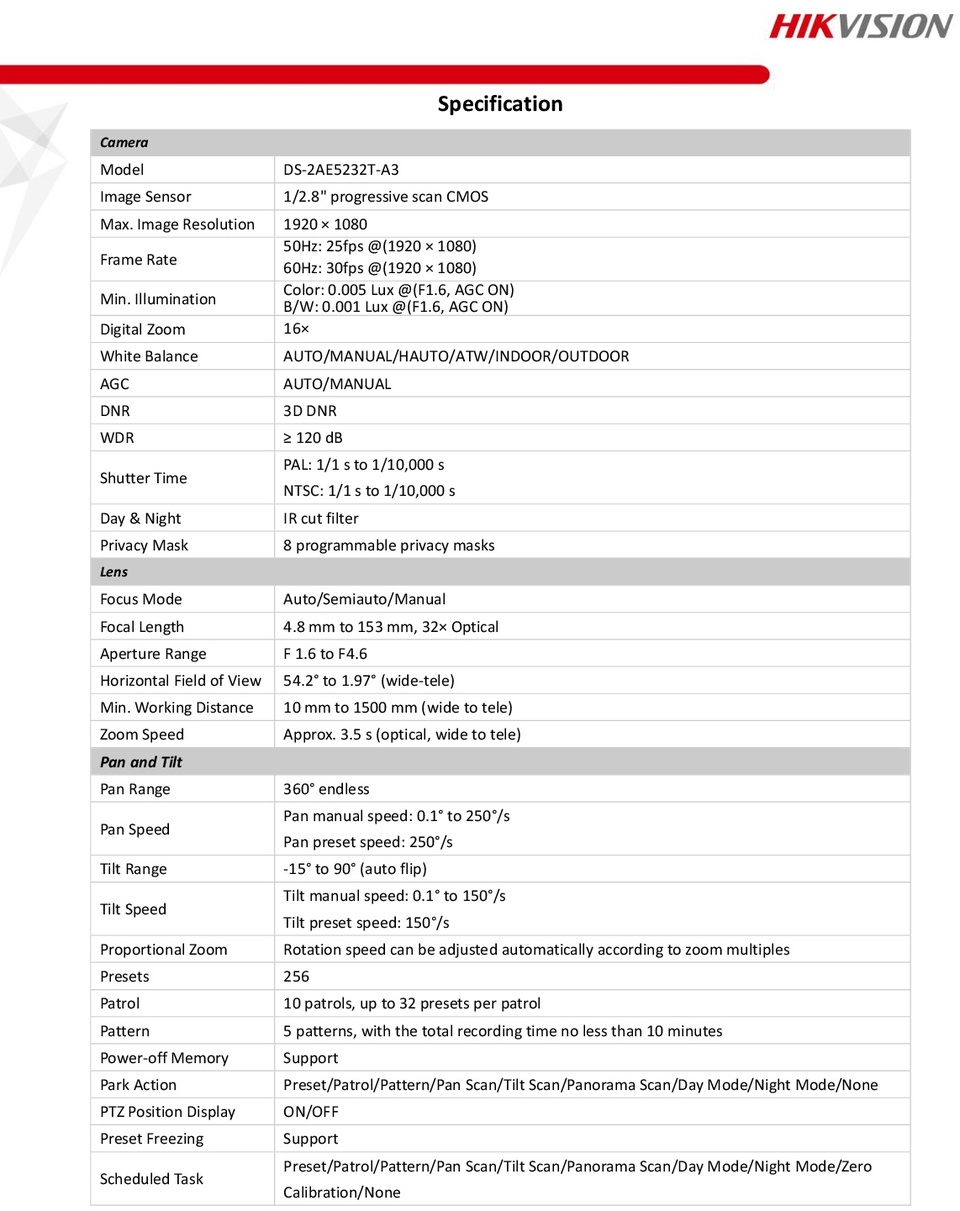

| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) | |
| White Balance: | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| WDR: | ≥ 120 dB | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Masking: | 8 privacy masks programmable | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 153 mm, 32× optical | |
| Zoom Speed: | Approx. 5.6 s (optical, wide to tele) | |
| Angle of View: | Horizontal field of view: 55.6° to 2.04° (wide to tele) Vertical field of view: 32.4° to 1.14° (wide to tele) Diagonal field of view:63° to 2.34° (wide to tele) | |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) | |
| Aperture Range: | F 1.2 to F 4.4 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan manual speed: 0.1° to 250°/s Pan preset speed: 250°/s | |
| Tilt Range: | -5°~90° (Auto Flip ) | |
| Tilt Speed: | Tilt manual speed: 0.1° to 150°/s Tilt preset speed: 150°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None | |
| PTZ Position Display: | ON/OFF | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Output: | 1 | |

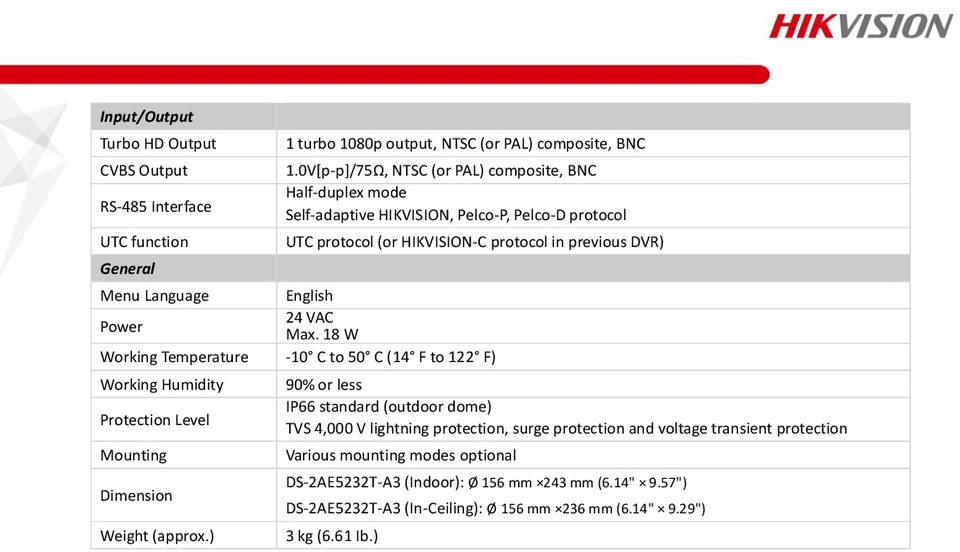

| Input & Output | ||
|---|---|---|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) | |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Menu Language: | English | |
| Power Supply: | 24V AC | |
| Power Consumption: | Max. 18 W | |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less | |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection | |

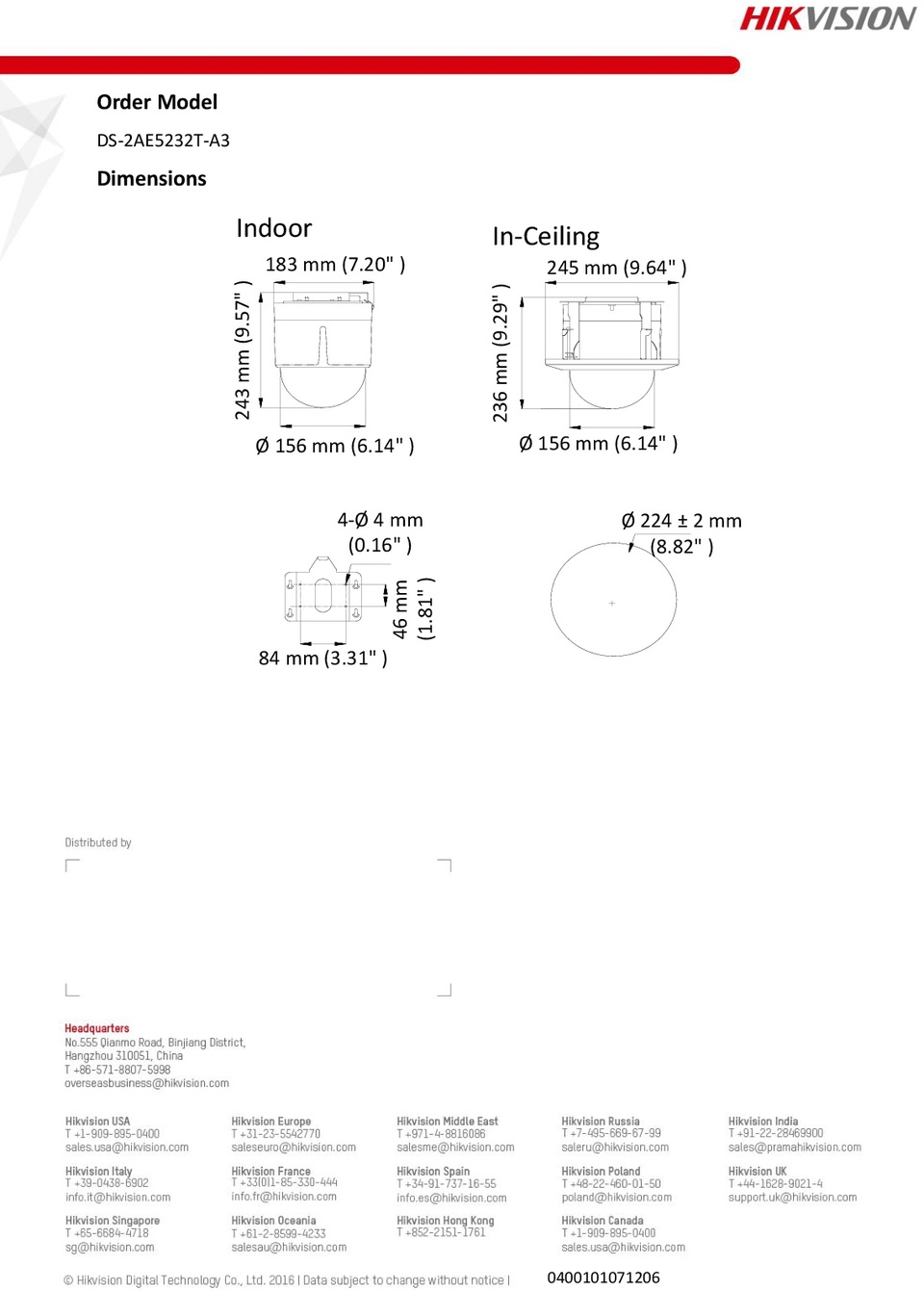

| Dimensions: | DS-2AE5232T-A3 (Indoor): Ø 156 mm ×243 mm (6.14" × 9.57") DS-2AE5232T-A3 (In-Ceiling): Ø 156 mm ×236 mm (6.14" × 9.29") | |
