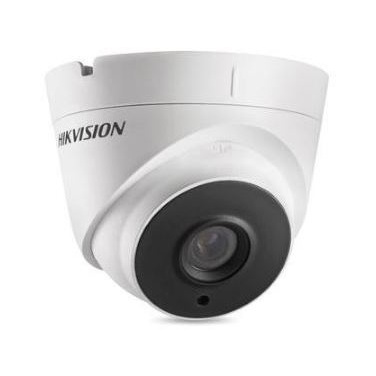

Hikvision DS-2CC52D9T-IT3E HD-TVI 2MP Starlight Turret Camera With 2.8mm Lens
Web ID: 440
Hikvision DS-2CC52D9T-IT3E HD-TVI 2MP Starlight Turret Camera With 2.8mm Lens
Manufacturer PN: DS-2CC52D9T-IT3E
Warranty: 3 Year
Manufacturer Website
$205

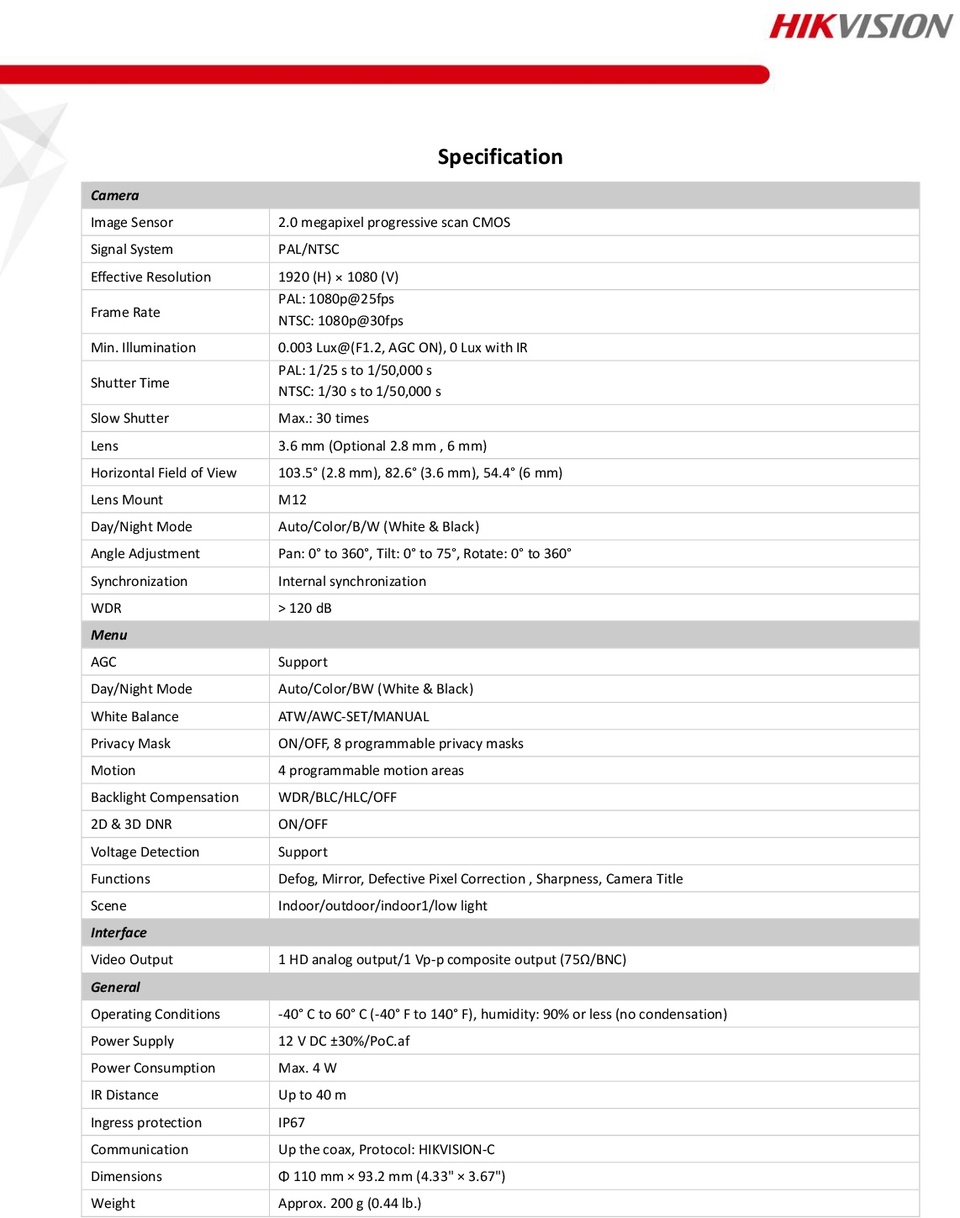

| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Min. Illumination: | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6 mm (Optional 2.8 mm , 6 mm) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120dB | |
| Video Frame Rate: | PAL: 1080p@25fps NTSC: 1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| CVBS Output: | 1Vp-p Composite Output(75Ω/BNC) | |
| Up the Coax: | Support | |
| Menu | ||
|---|---|---|
| Voltage Detection: | Support | |
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | ATW/AWC-SET/MANUAL | |
| Private Mask: | ON/OFF, 8 programmable privacy masks | |
| Motion Detection: | 4 programmable motion areas | |
| Function: | Defog, Mirror, Defective Pixel Correction , Sharpness, Camera Title | |
| Scene: | Indoor/outdoor/indoor1/low light | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 V DC ±30%/PoC.af | |
| Power Consumption: | Max. 4 W | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 40m | |

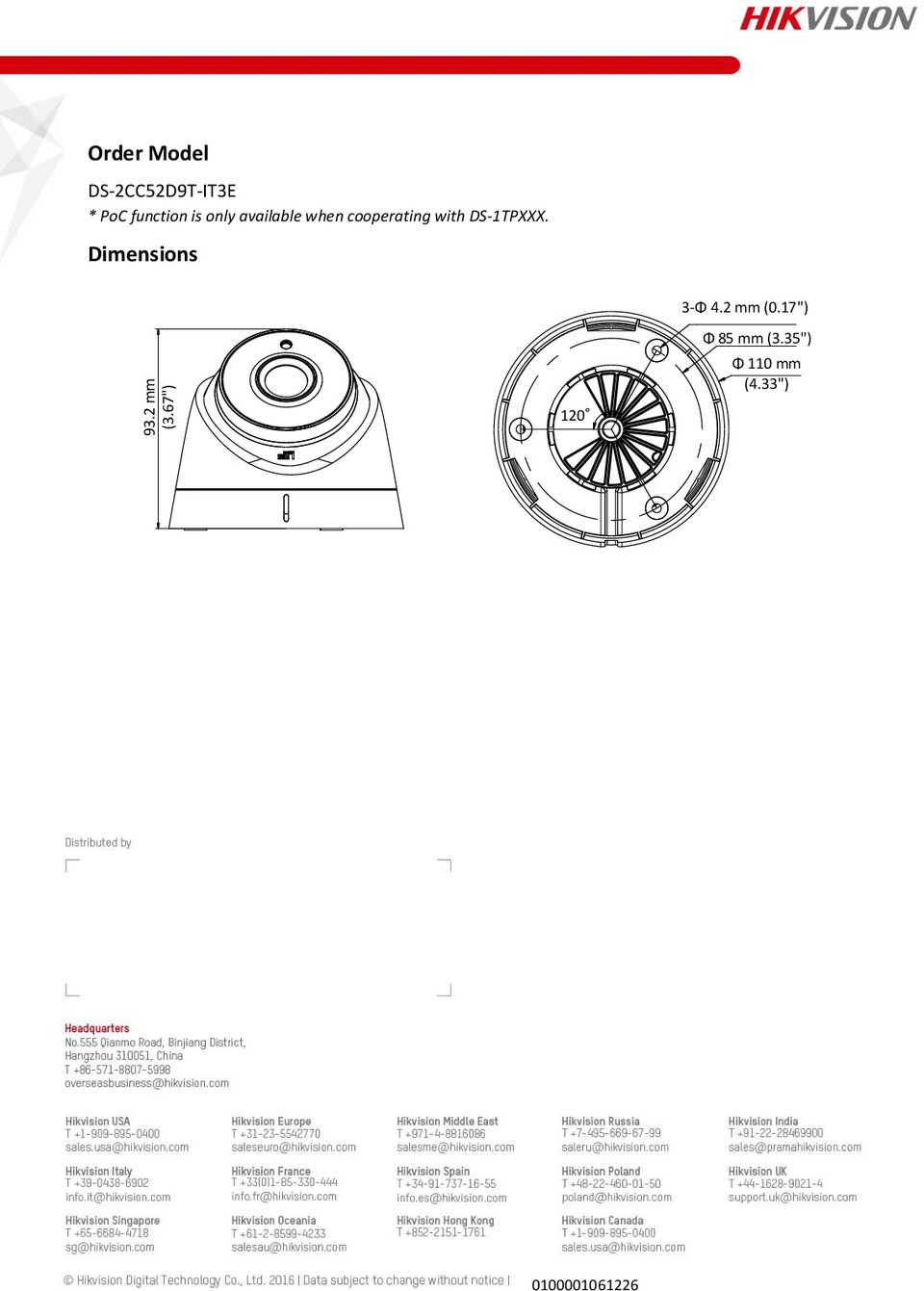

| Dimension: | Φ 110 mm × 93.2 mm (4.33" × 3.67") | |
| Weight: | Approx. 200 g (0.44 lb.) | |
