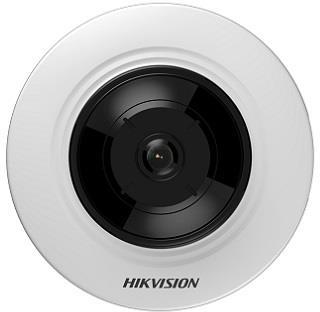

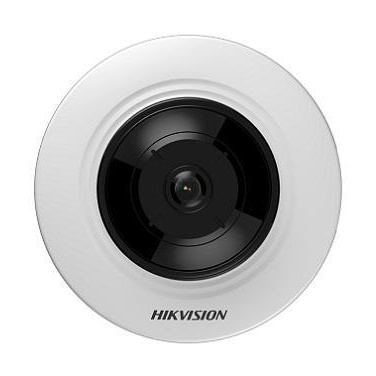

Hikvision DS-2CD2955FWD-I 5MP Economic 180 Panoramic Fisheye Camera
Web ID: 263
Hikvision DS-2CD2955FWD-I 5MP Economic 180 Panoramic Fisheye Camera
Manufacturer PN: DS-2CD2955FWD-I
Warranty: 3 Year
Manufacturer Website
$377
DS-2CD2955FWD-I
5MP Economic 180 Panoramic Fisheye Camera
Key Features
- Up To 5 megapixel High Resolution
- 2560×1920 @30fps
- H.265, H.265+, H.264+, H.264
- Support 14 display modes
- FOV: horizontal field of view 180°, vertical field of view 180°
- Dual video streams
- Digital Noise Reduction
- Support on-board storage, up to 128 G
- DC12V & PoE (802.3af)
- Up to 8 m IR range
- -S: Audio/Alarm IO
- Mobile Monitoring via Hik-Connect
| Image Sensor: | 1/2.5" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180° | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2) | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2560×1920 | |
| Sub Stream: | 50Hz: 25fps (352× 288, 704 × 576) 60Hz: 30fps (352 × 240, 704 × 576) | |
| Frame Rate: | 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960) | |
| Image Enhancement: | BLC/3D DNR | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| BLC: | Support | |
| ROI: | Support 1 fixed region for each stream | |
| Day/Night Switch: | Auto/Scheduled | |
| Network | ||
|---|---|---|
| Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | With –S model: 1 input (line in), 1 output | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Smart Feature-set | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| General | ||
|---|---|---|
| Operating Conditions: | -10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | DC 12V ± 25%, 2A, 5W PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W | |
| IR Range: | Up to 8m | |
| Dimensions: | Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″) | |
| Weight: | 600 g (1.32 lbs.) | |
