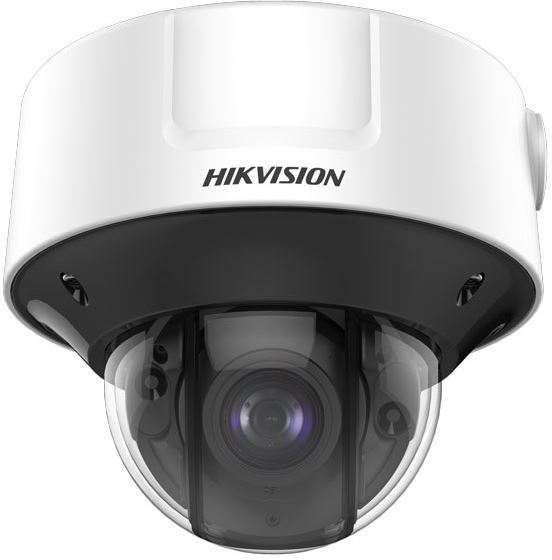

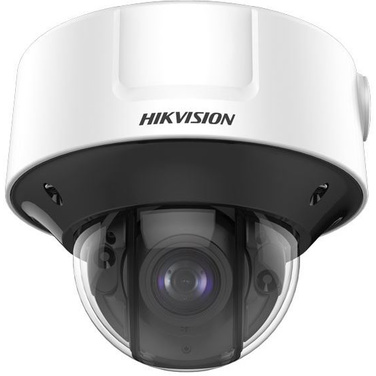

Hikvision DS-2CD5546G0-IZHS 4MP IP Outdoor Darkfighter Dome Camera With Motorised Lens & Heater
Web ID: 862
Part of Hikvision's enterprise range of network cameras, the DS-2CD5546G0-IZHS is an outdoor motorised varifocal IR dome camera that produces an exceptional 4MP high-resolution video. Powered by Darkfighter and Lightfighter technology, this camera can produce clear and crisp images in environments with extreme background lighting or in ultra-low light situations. The DS-2CD5546G0-IZHS includes an ideal combination of smart features for its affordable price such as 140dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO, smart video content analytics (VCA) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively. With a 2.8-12mm motorised varifocal lens , this camera offers great flexibility.
Manufacturer PN: DS-2CD5546G0-IZHS
Warranty: 3 Year
$1154
DS-2CD5546G0-IZHS
4MP IP Outdoor Darkfighter Dome Camera With Motorised Lens & Heater
Key Features
- 1/1.8 inch progressive scan CMOS
- 2560 x 1440 at 30fps
- Colour: 0.002 lux at (F1.2, AGC ON)
- 2.8-12mm motorised varifocal lens
- H.265, H.265+, H.264+, H.264
- 140dB wide dynamic range (WDR)
- Up to 30m IR
- Video content analytics (VCA) including face detection and object counting
- 5 defined streams and up to 5 custom streams supported
- Supports on-board storage up to 256 GB
- IK10 & IP67 rating
- Built-in heater
- 12VDC or PoE
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.8" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter time: | 1 s to 1/100,000 s | |
| Slow shutter: | Yes | |
| Lens: | 2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45° | |
| Lens Mount: | Integrated | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 140dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Auto, semi-auto, manual | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
| Dual Stream: | Yes | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2560 × 1440 | |
| Frame Rate: | 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) | |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960,1280 × 720, 704 × 480, 640 × 480) | |
| Image Enhancement: | BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction | |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
| Target Cropping: | Yes | |
| ROI: | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
| Day/Night Switch: | Auto/Schedule/Day/Night/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter | |
| System Compatibility: | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK | |
| Intelligent | ||
|---|---|---|
| Behavior analysis: | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port | |
| Audio: | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono | |
| Alarm: | 1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA) | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| Video Output: | 1Vp-p composite output (75 Ω/CVBS) | |
| On-board storage: | Built-in micro SD/SDHC/SDXC slot, up to 256 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz | |
| Smart Feature-set | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, defocus detection | |
| Recognition: | Face Detection | |
| Statistics: | Counting which calculates the number of targets entering and exiting a configured area | |
| General | ||
|---|---|---|
| IR Range: | 30m | |
| Operation Condition: | -IZSY: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) -IZHSY: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing) | |
| Power Supply: | Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; three-core terminal block,PoE (802.3at, class 4) | |
| Power Consumption: | -IZSY: With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 -IZHSY: With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 “with extra load” means that an extra device is connected to and powered by the camera. | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| Dimensions: | Camera: Φ162 × 140 mm (Φ6.4″ × 5.5″) With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″) | |
| Weight: | Camera: 1500 g (3.31 lb.) With package: 1950 g (4.30 lb.) | |
