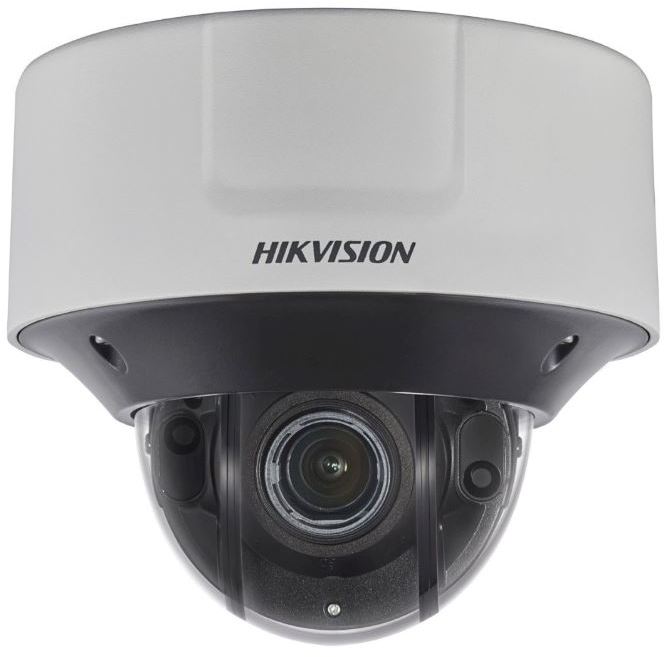

Hikvision DS-2CD55C5G0-IZS 12MP Outdoor Dome Camera With Vari Focal Lens
Web ID: 795
Hikvision DS-2CD55C5G0-IZS 12MP Outdoor Dome Camera With Vari Focal Lens
Manufacturer PN: DS-2CD55C5G0-IZS
Warranty: 3 Year
Manufacturer Website
$1779
DS-2CD55C5G0-IZS
12MP Outdoor Dome Camera With Vari Focal Lens
Key Features
- 1/1.7” Progressive Scan CMOS
- 4000 × 3000 @ 20fps
- 2.8 to 12 mm motor-driven lens
- Color: 0.008 Lux @ (F1.2, AGC ON)
- H.265, H.265+, H.264, H.264+
- Digital WDR
- 3D DNR
- IR range up to 30 m
- Five streams and up to five custom streams
- 6 behavior analyses, 3 exception detection, and face detection
- Built-in microSD/SDHC/SDXC card slot, up to 256 GB
- Alarm I/O, Audio I/O
- 12 VDC power output
- IP67, IK10
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.7" Progressive Scan CMOS | |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON) 0 Lux with IR | |
| Shutter time: | 1 s to 1/100,000 s | |
| Slow shutter: | Yes | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-160Kbps(MP2L2) | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 4000 × 3000 | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) | |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) | |
| Image Enhancement: | BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction | |
| Target Cropping: | Yes | |
| ROI: | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
| Day/Night Switch: | Auto/Schedule/Day/Night/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Intelligent | ||
|---|---|---|
| Behavior analysis: | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port | |
| Alarm: | 1-ch input, 1-ch output ( up to 12 VDC 1A or 10 VAC 500 mA) | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| General | ||
|---|---|---|
| Operation Condition: | -IZS: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) -IZHS: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing) | |
| IR Range: | up to 30 m | |
| Power Consumption: | -IZHS: With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 “with extra load” means that an extra device is connected to and powered by the camera. -IZS: With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 “with extra load” means that an extra device is connected to and powered by the camera. | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| Dimensions: | Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″) With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″) | |
| Weight: | Camera: 1500 g (3.31 lb.) With package: 1950 g (4.30 lb.) | |
