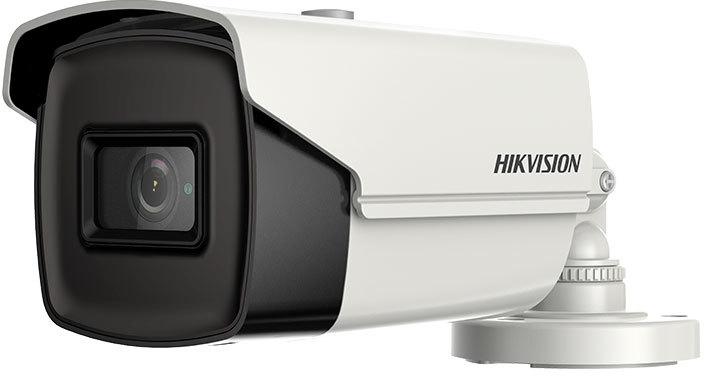

Hikvision DS-2CE16H8T-IT3F 5MP Bullet Camera With 2.8mm Lens
Web ID: 922
Hikvision's DS-2CE16H8T-IT3F is an outdoor bullet camera that produces exceptional 5MP high resolution video images over coaxial cable. This camera is part of Hikvision's TVI 4.0 range and provides an ideal solution for the upgrade of existing analogue sites to high definition surveillance without the need to re-cable. The inbuilt EXIR technology delivers unparalleled clarity at night for up to 60m and with a 2.8mm fixed lens , this camera is great for covering wide areas providing clear focus on the detail that is really required.
The TVI 4.0 generation has been rigorously tested to deliver 24/7 video surveillance with an unparalleled clarity that can only be provided by a Hikvision Turbo HD camera.
Manufacturer PN: DS-2CE16H8T-IT3F
Warranty: 3 Year
Manufacturer Website
DS-2CE16H8T-IT3F
5MP Bullet Camera With 2.8mm Lens
Key Features
- 5MP high-performance CMOS
- 2560 x 1944 resolution
- 2.8mm fixed lens
- OSD menu, 3D DNR, 130dB WDR
- EXIR technology, up to 60m IR distance
- 4 in 1 video output
- Up the Coax (HIKVISION-C)
- IP67
- 12VDC
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | 2560 × 1944 @ 20fps | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English | |
| Function: | Brightness, Sharpness, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 60m | |
| Dimension: | 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" ) | |
| Weight: | Approx. 570 g (1.26 lb.) | |
