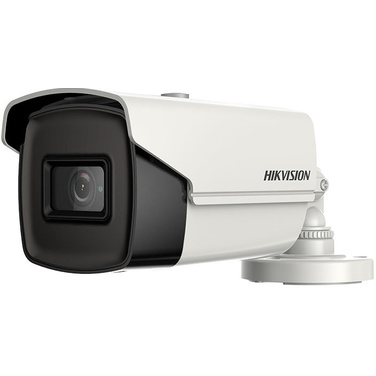

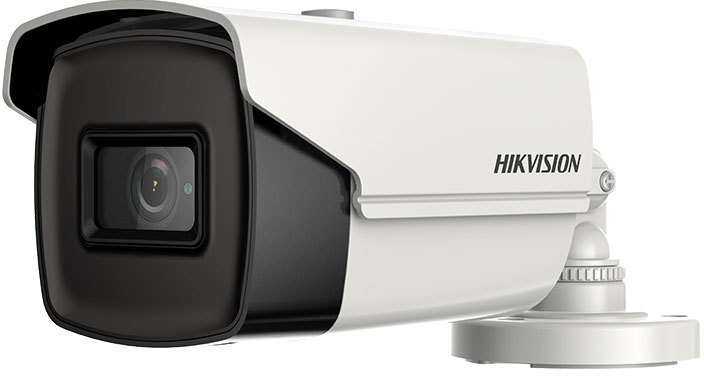

Hikvision DS-2CE16H8T-IT5F 5MP Bullet Camera With 3.6mm Lens
Web ID: 923
Hikvision's DS-2CE16H8T-IT5F is an outdoor bullet camera that produces exceptional 5MP high resolution video images over coaxial cable. This camera is part of Hikvision's TVI 4.0 range and provides an ideal solution for the upgrade of existing analogue sites to high definition surveillance without the need to re-cable. The inbuilt EXIR technology delivers unparalleled clarity at night for up to 80m and with a 3.6mm fixed lens , this camera is great for covering wide areas providing clear focus on the detail that is really required.
The TVI 4.0 generation has been rigorously tested to deliver 24/7 video surveillance with an unparalleled clarity that can only be provided by a Hikvision Turbo HD camera.
Manufacturer PN: DS-2CE16H8T-IT5F
Warranty: 3 Year
Manufacturer Website
DS-2CE16H8T-IT5F
5MP Bullet Camera With 3.6mm Lens
Key Features
- 5MP high-performance CMOS
- 2560 x 1944 resolution
- 3.6mm fixed lens
- OSD menu, 3D DNR, 130dB WDR
- EXIR technology, up to 80m IR distance
- 4 in 1 video output
- Up the Coax (HIKVISION-C)
- IP67 rating
- 12VDC
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | 2560 × 1944 @ 20fps | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 | |
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 80m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" ) | |
| Weight: | Approx. 570 g (1.26 lb.) | |
