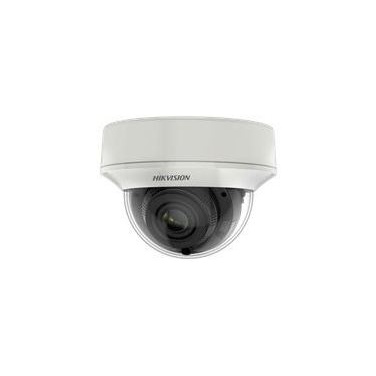

Hikvision DS-2CE56H8T-AITZF 5MP HD-TVI Indoor Dome Camera With Motorised Lens
Web ID: 904
Hikvision's HIK-2CE56H8TAITZ is an indoor dome camera that produces exceptional 5MP high resolution video images over coaxial cable. This camera is part of Hikvision's TVI 4.0 range and provides an ideal solution for the upgrade of existing analogue sites to high definition surveillance without the need to re-cable. The inbuilt EXIR technology delivers unparalleled clarity at night for up to 60m and with a motorised varifocal lens range of 2.7 to 13.5mm, this camera is great for covering wide areas providing clear focus on the detail that is really required. Part of the H8T series, this camera has switchable video output which give the SI the ability change video signal type between TVI, AHD, CVI and CVBS signal, to suit different appliaction. In addition to switchable output, the H8T series also supports 130dB true wide dynamic range, amazing ultra-low light performance down to 0.003Lux.
Manufacturer PN: DS-2CE56H8T-AITZF
Warranty: 3 Year
Manufacturer Website
DS-2CE56H8T-AITZF
5MP HD-TVI Indoor Dome Camera With Motorised Lens
Key Features
- 5MP high-performance CMOS
- 2560 x 1944 resolution
- 2.7 to 13.5mm motorised varifocal lens
- OSD menu, 3D DNR, 130dB WDR
- EXIR technology, up to 60m IR distance
- 4 in 1 video output
- Up the Coax (HIKVISION-C)
- 9.6 to 14.4VDC
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.7 mm to 13.5 mm motorized vari-focal lens | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| BLC: | Support | |
| AGC: | Support | |
| WDR: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C to 50 °C (-40 °F to 122 °F), humidity: 90% or less (non-condensation) | |
| Power Supply: | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC | |
| IR Range: | Up to 60m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | Ø 136 mm × 101.9 mm ( Ø 5.35" × 4.01") | |
| Weight: | Approx. 430 g (0.95 lb.) | |
