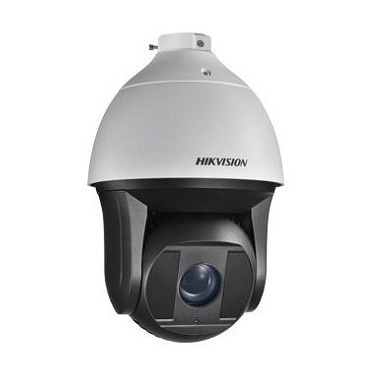

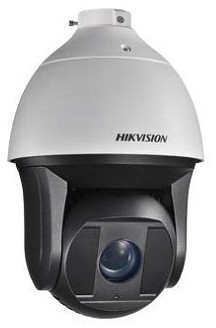

Hikvision DS-2DF8436IX-AELW (With Wiper) 4MP Darkfighter PTZ With 36x Optical Zoom
Web ID: 259
Hikvision DS-2DF8436IX-AELW (With Wiper) 4MP Darkfighter PTZ With 36x Optical Zoom
Manufacturer PN: DS-2DF8436IX-AELW
Warranty: 3 Year
Manufacturer Website
$4232
| Camera | ||
|---|---|---|
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR | |
| White Balance: | Auto / Manual | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | DWDR | |
| Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Masking: | 24 privacy masks programmable | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 5.7 mm to 205.2 mm, 36× Optical | |
| Zoom Speed: | Approx. 4.4s (optical lens, wide-tele) | |
| Angle of View: | Horizontal field of view: 51.1° to 1.7° (wide-tele) Vertical field of view: 31.3° to 1.0° (wide-tele) Diagonal field of view: 58.0° to 2.0° (wide-tele) | |
| Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
| Aperture Range: | F1.5~F4.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s | |
| Tilt Range: | -20°~90°(Auto Flip) | |
| Tilt Speed: | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power loss recovery: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Freeze Frame: | Support | |
| Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger | |
| Wiper: | Optional | |
| Infrared | ||
|---|---|---|
| IR irradiation distance: | 200m | |
| IR irradiation angle: | Adjustable by zoom | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) | |
| Third Stream: | 50Hz: 25fps(704×576, 640×480, 352×288); 60Hz: 30fps(704×480, 640×480, 352×240) | |
| Audio Mode: | OFF/Audio input/Audio output | |
| No. of Simultaneous Users: | Up to 20 users | |
| Three-Stream: | Support | |
| Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering | |
| Client GUI | ||
|---|---|---|
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Client: | Support iVMS-4200 | |
| Web Browser: | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Power Consumption: | 24 VAC (Max. 60 W) Hi-PoE (Max. 50 W) | |
| Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F) | |

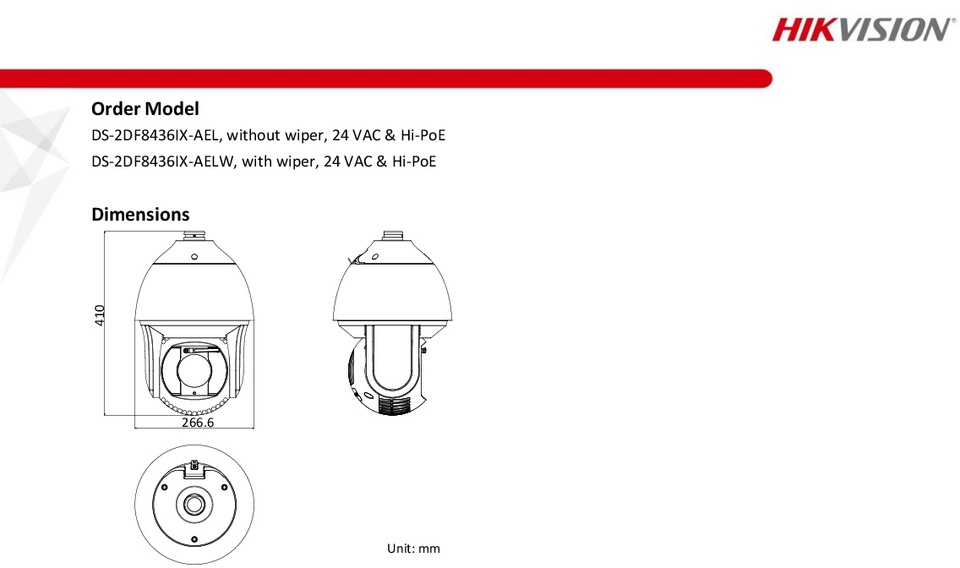

| Dimensions: | Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14") | |
| Weight (approx.): | 8kg (approx.17.64lb) | |
