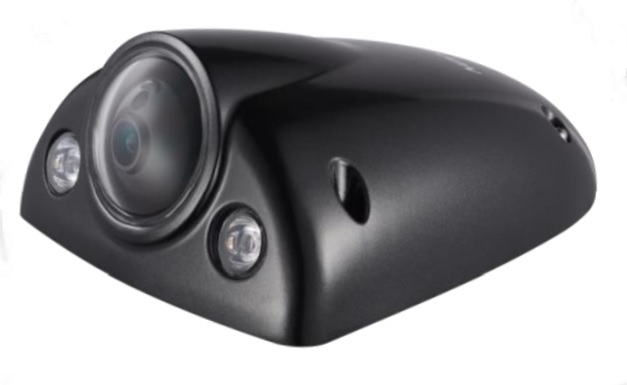

Hikvision DS-2XM6522WD-IM 2MP Mobile Network Camera With 6mm Lens & M12 Connector
Web ID: 451
Hikvision DS-2XM6522WD-IM 2MP Mobile Network Camera With 6mm Lens & M12 Connector
Manufacturer PN: DS-2XM6522WD-IM
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.7” Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s, support auto electronic shutter | |
| Slow shutter: | support | |
| Lens: | 6 mm, horizontal field of view 53.9°[4 mm (90°), 8 mm (37.9°), 12 mm (24.3°), optional] | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Dual Stream: | Yes | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) | |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
| Image Enhancement: | BLC/HLC/3D DNR/Defog/EIS | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Target Cropping: | support | |
| ROI: | Support 4 fixed region for each stream, or face dynamic tracking | |
| 3D DNR: | support | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering | |
| Intelligent | ||
|---|---|---|
| Face Capture: | Human face appears in the image can be detected and trigger linkage method | |
| Interface | ||
|---|---|---|
| Communication Interface: | -IM: M12 aviation plug -I: 1 RJ45 10M/100M Ethernet port | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, defocus detection | |
| General | ||
|---|---|---|
| Operation Condition: | -40 °C to 70 °C (-40 °F to 158 °F), Humidity 95% or less (non-condensing) | |
| IR Range: | 30-50m | |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 8.5W | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP68 | |
| Dimensions: | 163.7 × 122.6 × 65.1 mm (6.4″ × 4.8″ × 2.6″) | |
| Weight: | 960g (2.1lbs) | |
