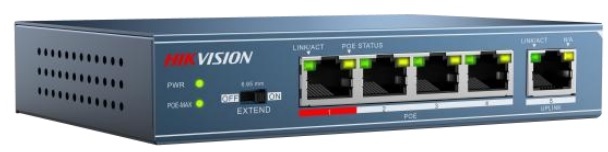

Hikvision DS-3E0105P-E 4 Port 10/100Mbps Unmanaged PoE Switch With Extension Mode Up To 250m
Web ID: 383
DS-3E0105P-E is an 4 10/100Mbps ports unmanaged
switch that requires no configuration and provides 4
PoE (Power over Ethernet) ports. It can automatically
detect and supply power with all IEEE 802.3af/at
compliant Powered Devices (PDs). In this situation, the
electrical power is transmitted along with data in one
single cable allowing you to expand your network to
where there are no power lines or outlets, where you
wish to fix devices such as IP Cameras or IP Phones,
etc.
Manufacturer PN: POE-HIK-DS-3E0105P-E
Warranty: 3 Year
$80
POE-HIK-DS-3E0105P-E
DS-3E0105P-E 4 Port 10/100Mbps Unmanaged PoE Switch With Extension Mode Up To 250m
Key Features
- Layer 2 unmanaged PoE switch
- 4x 10/100Mbps Ethernet ports
- 1x 100Mbps uplink
- IEEE 802.3af or 802.3at PoE standard
- 802.3af or 802.3at
| Ports | ||
|---|---|---|
| Network Ports: | 5 | |
| PoE Port: | 4, 10/100Mbps RJ45 ports | |
| Uplink Port: | 1, 100M Ethernet Port | |
| Standard | ||
|---|---|---|
| Network Protocol: | IEEE802.3,802.3u,802.3x, 802.3af, 802.3at | |
| Performance | ||
|---|---|---|
| Switching Capacity: | 1Gbps | |
| Max. Forwarding Rate: | 0.74Mpps | |
| High Priority Ports: | Port 1 | |
| Forwarding Mode: | Store-and-forward | |
| MAC Address Table: | 1k | |
| Flow Control: | IEEE802.3x full duplex | |
| Power Over Ethernet | ||
|---|---|---|
| PoE Standard: | IEEE802.3af, IEEE802.3at | |
| PoE Power Budget: | 58W | |
| Working Mode: | Extend On:250m,10M,CAT 5e Extend Off:100m | |
| General | ||
|---|---|---|
| Power Supply: | 51V DC, 1.25A | |
| Power Consumption: | ≤63W | |
| Surge Protection: | 4KV | |
| Working Temperature: | Temperature: 0?-40? | |
| Working Humidity: | Humidity: 10%-90% , non-condensing | |
| Storage Temperature: | Temperature: -40?-70? | |
| Storage Humidity: | Humidity: 5%-90% , non-condensing | |
| Weight: | 0.299kg | |
| Dimension: | 132 mm* 93.3mm * 27.6mm | |
