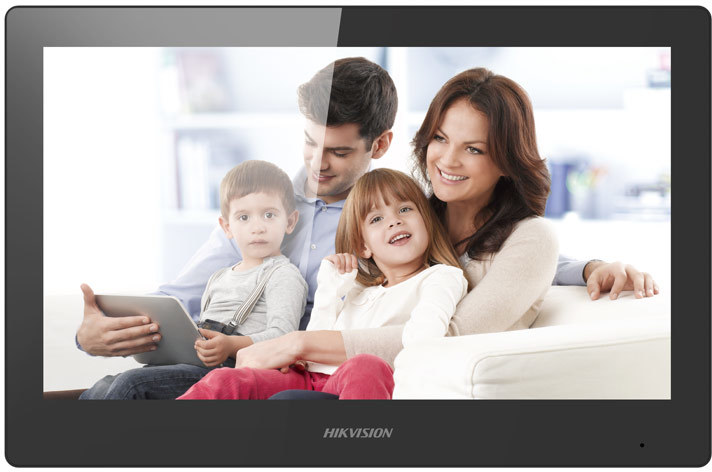

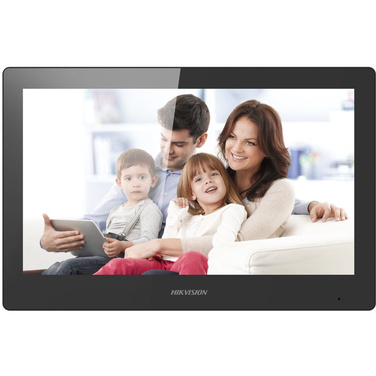

Hikvision DS-KH8520-WTE1 IP Intercom 10" Indoor Station with Wifi
Web ID: 966
The Hikvision DS-KH8520-WTE1 is a 10 inch colour room station that supports Wi-Fi. It is designed to work with the flexible 2nd Generation range of IP intercoms.
Manufacturer PN: DS-KH8520-WTE1
Warranty: 3 Year
Manufacturer Website
$541
DS-KH8520-WTE1
IP Intercom 10" Indoor Station with Wifi
Key Features
- 10 inch touch screen
- 1024 x 600 resolution
- Standard PoE
- 128MB memory
- Up to 32GB micro SD card slot for memory expansion
- Built-in omnidirectional microphone and loudspeaker
- Integrates With Hikvision NVR
- Supports wireless network
| System Parameters | ||
|---|---|---|
| Operation System: | Embedded Linux Operation System | |
| Flash: | 32MB | |
| Memory: | 128MB | |
| Display Parameters | ||
|---|---|---|
| Display Screen: | 10.1-inch colorful TFT LCD | |
| Display Resolution: | 1024 × 600 | |
| Operation Method: | Capacitive touch screen | |
| Audio Parameters | ||
|---|---|---|
| Audio Input: | Built-in Omnidirectional Microphone | |
| Audio Output: | Built-in Loudspeaker | |
| Audio Compression Standard: | G.711 U | |
| Audio Compression Rate: | 64 Kbps | |
| Audio Quality: | Noise Suppression and Echo Cancellation | |
| Network Parameters | ||
|---|---|---|
| Wired network: | 10/100 Mbps self-adaptive network | |
| Wireless network: | Wi-Fi 802.11b/g/n | |
| Network Protocol: | TCP/IP, SIP, RTSP | |
| Network interface: | 1 RJ-45 10/100 Mbps self-adaptive | |
| Device Interfaces | ||
|---|---|---|
| Relay Output: | 2 | |
| Alarm Input: | 8-ch alarm inputs | |
| RS-485: | 1 | |
| TF Card (micro SD card): | Max to 32 G, SD 2.0 or lower version | |
| General | ||
|---|---|---|
| Power Supply: | IEEE802.3af standard PoE, 12 VDC/1A | |
| Power Consumption: | ≤6W | |
| Working Humidity: | 10% to 90% | |
| Working Temperature: | -10° C to + 55° C (14° F to 131° F) | |
| Dimensions(L × W × H): | 254 mm × 166 mm × 14.7 mm (10.0" ×6.5" × 0.58") | |
