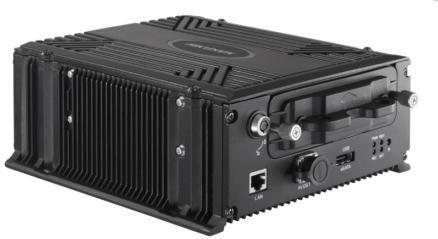

Hikvision DS-M7508HNI 8ch Mobile NVR with 8 PoE Ports & 1TB Hard Drive (Not Installed)
Web ID: 81
Hikvision DS-M7508HNI 8ch Mobile NVR with 8 PoE Ports & 1TB Hard Drive (Not Installed)
Manufacturer PN: DS-M7508HNI
Warranty: 3 Year
This product cannot be purchased online. Please call for pricing.
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 3-ch | |
| Video Compression: | H.264 | |
| IP Video Input: | 8-ch | |
| Video Input Interface: | Aviation plug (1.0 Vp-p, 75 Ω), PAL/NTSC self-adaptive | |
| Video/Audio Output | ||
|---|---|---|
| Video output: | 2-ch CVBS video output, aviation plug (1.0 Vp-p , 75 Ω) Resolution: PAL: 704×576, NTSC: 704×480 | |
| VGA Output: | 1-ch, resolution: 1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz | |
| Recording resolution: | 1920×1080 / 1280×720 / 4CIF / CIF | |
| Stream Type: | Video/Video&Audio | |
| Dual Stream: | Support | |
| Playback Resolution: | 1920×1080 / 1280×720 / 4CIF / CIF | |
| Synchronous Playback: | 1-ch | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| Capacity: | support 2.5” SATA HDD/SSD | |
| e-SATA Interface: | 1 eSATA interface | |
| Data Backup: | Backup by pluggable HDD /eSATA /USB devices | |
| Wireless Transmission | ||
|---|---|---|
| GPS: | Built-in high-sensitivity GPS chip | |
| External Interface | ||
|---|---|---|
| SD Card Interface: | 1 standard SD/SDHC slot | |
| Network Interface: | 1 RJ45 10M/100M/1000M adaptive Ethernet Interface | |
| 3G antenna interface: | 2 antennas, SMA interface | |
| USB Interface: | 1 USB 2.0 interface | |
| Alarm Input: | 7-ch input, the 8th channel is reserved | |
| Alarm Output: | 2-ch | |
| GPS: | Build-in GPS module | |
| Control mode: | IR,web,Platform,MVA | |
| SIM/UIM: | 1 standard SIM/UIM slot | |
| Driving Information Collection: | 4-ch high/low-level signal input, 1-ch pulse signal input(reserved) | |
| USB/eSATA Interface: | 1 USB/eSATA Interface | |
| General | ||
|---|---|---|
| Power Supply: | Input: +9 to +32VDC; | |
| Power Output: | Output: 12 VDC/2 A, 5 VDC/1 A | |
| Operating System: | Embedded Linux Operating System | |
| Power Off Delay: | support | |
| Schedule On/Off: | support | |
| Operating Mode: | IR Remote Control | |
| Consumption: | Standby: Max. 0.5W; Full load: Max.20W (without IP camera or hard disk) | |
| Working Temperature: | -10º C to +55º C (14º F to 131º F) with enterprise-class HDD; -20º C to +60º C (-4º F to 140º F) with industrial-class HDD. Note: for enterprise-class HDD, when the temperature < 0 ºC, the heater for hard disk is needed. | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 245.8mm×202mm×86.87mm | |
| Weight: | ≤ 3.3kg (without hard disk) | |
