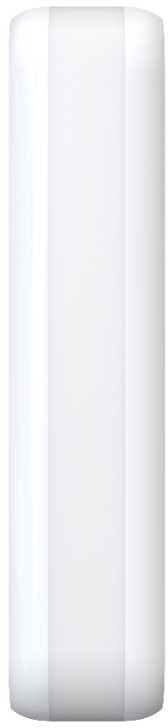

Hikvision DS-PDC10DM-EG2-WB Ax Pro Wireless Outdoor Curtain Dual Tech Detector with Anti-masking
Web ID: 1346
The Hikvision DS-PDC10DM-EG2-WB outdoor curtain dual-tech detector has two-way wireless communication featuring motion detection, tamper protection, low battery, and RF supervision. It has a solid curtain coverage up to 10m long by 5m high. It is suitable for perimeter protection by setting up a detection curtain along walls or windows. It has a 12kg, wall mounted pet immunity, active IR anti-masking and is fully remote configurable through the Hik-Connect app.
Manufacturer PN: DS-PDC10DM-EG2-WB
Warranty: 3 Year
Manufacturer Website
$139
- Detection Performance
- Detection Method - Passive Infrared;Microwave
- Detection Range - Wall Mount:10m, Ceiling Mount:5m
- Detection Angle - 5°
- Detection Zones - 32
- Detectable Speed - 0.3~2m/s
- Sensitivity - Auto;Pet
- White Light Filter - 6500lux
- Microwave Frequency - 24GHz(24.15~24.25GHz)
- Pet Immunity - Wall Mount:12Kg, Ceiling Mount:None
- Digital Temperature Compensation - Support
- Creep Zone Protection - Support
- Anti-masking - Support
- Feature
- Digital Processing - Support
- Sealed Optics - Support
- Tamper Protection - Front;Rear
- Environment Temperature Indicator - Support
- Signal Strength Indicator - Support
- Directional Detection - Support
- Interface
- Power Switch - Power Up Enrolling
- LED Indicator - Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm)
- Transmission
- Transmission Technology - Tri-X Wireless
- Transmission Method - Two-Way RF Wireless
- Transmission Frequency - 433MHz
- Transmission Security - AES-128 Encryption
- Transmission Range (Free Space) - 1Km
- Frequency Hopping - Support
- Enrolling Method - Power up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery Life - 5 years in work status (being triggered 20 times per day)
- Power Supply - Battery Powered
- Battery Type - CR123A × 2
- Typical Voltage - 3V
- General
- Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity - 10% to 90%
- IP Rating - IP65
- Dimension(WxHxD) - 29.2mm × 134.4mm × 39.5mm
- 120g
- Mounting Height - 2 to 3.5m
- Mounting Method - Wall;Ceiling
- Application Scenario - Indoor,Outdoor
- Bracket - L-shaped adapter included
- Document

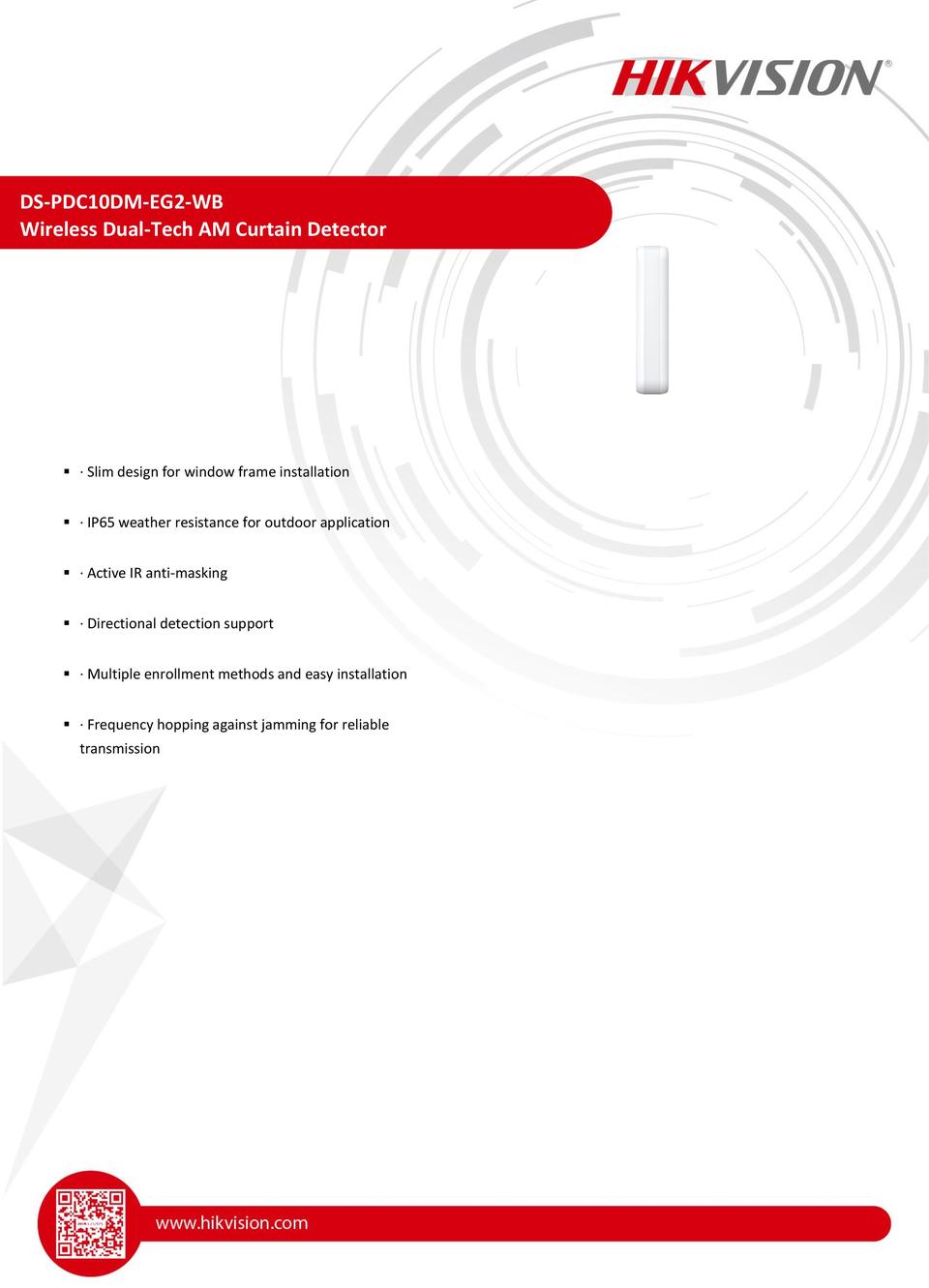

- DS-PDC10DM-EG2-WB_Datasheet.pdf
