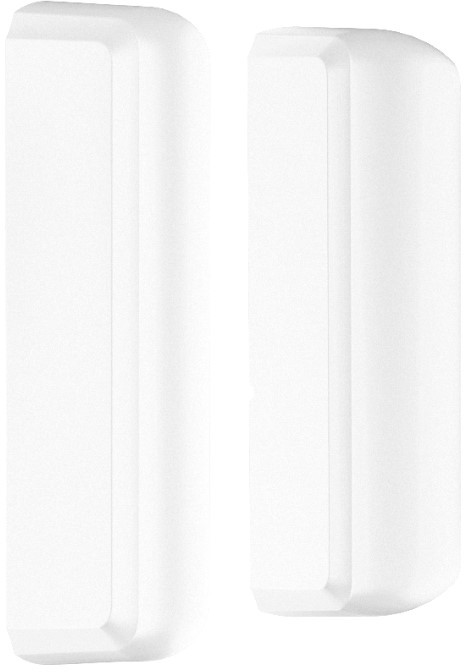

Hikvision DS-PDMCX-E-WB Ax Pro Wireless Outdoor Reed Switch
Web ID: 1350
The Hikvision DS-PDMCX-E-WB outdoor reed switch has two-way wireless communication featuring tamper protection, low battery, and RF supervision. It has a slim and unobtrusive design, has an ingress protection rating of IP66 for outdoor use and is fully remote configurable through the Hik-Connect app.
Manufacturer PN: DS-PDMCX-E-WB
Warranty: 3 Year
Manufacturer Website
$72
- Detection Performance
- Detection Method - Opening Contact
- Detection Gap - 76mm Max
- Feature
- Digital Processing - Support
- Tamper Protection - Front;Rear
- Environment Temperature Indicator - Support
- Signal Strength Indicator - Support
- Interface
- Alarm Input - Normally Closed;Normally Open;Impulse Count
- Power Switch - Power Up Enrolling
- LED Indicator - Blue (Alarm)
- Transmission
- Transmission Technology - Tri-X Wireless
- Transmission Method - Two-Way RF Wireless
- Transmission Frequency - 433MHz
- Transmission Security - AES-128 Encryption
- Transmission Range (Free Space) - 1Km
- Frequency Hopping - Support
- Enrolling Method - Power up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery Life - 5 years
- Power Supply - Battery Powered
- Battery Type - CR123A x 1
- Typical Voltage - 3V
- General
- Operation Temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Storage Temperature -30 °C to 60 °C (-22 °F to 149 °F)
- Operation Humidity - 10% to 90%
- Dimension(WxHxD) Sensor: 40.5mm × 146mm × 40.9mm, Magnetic Stick: 30.5mm × 146mm × 40.9mm
- 247g
- Application Scenario - Outdoor, IP66
- Document

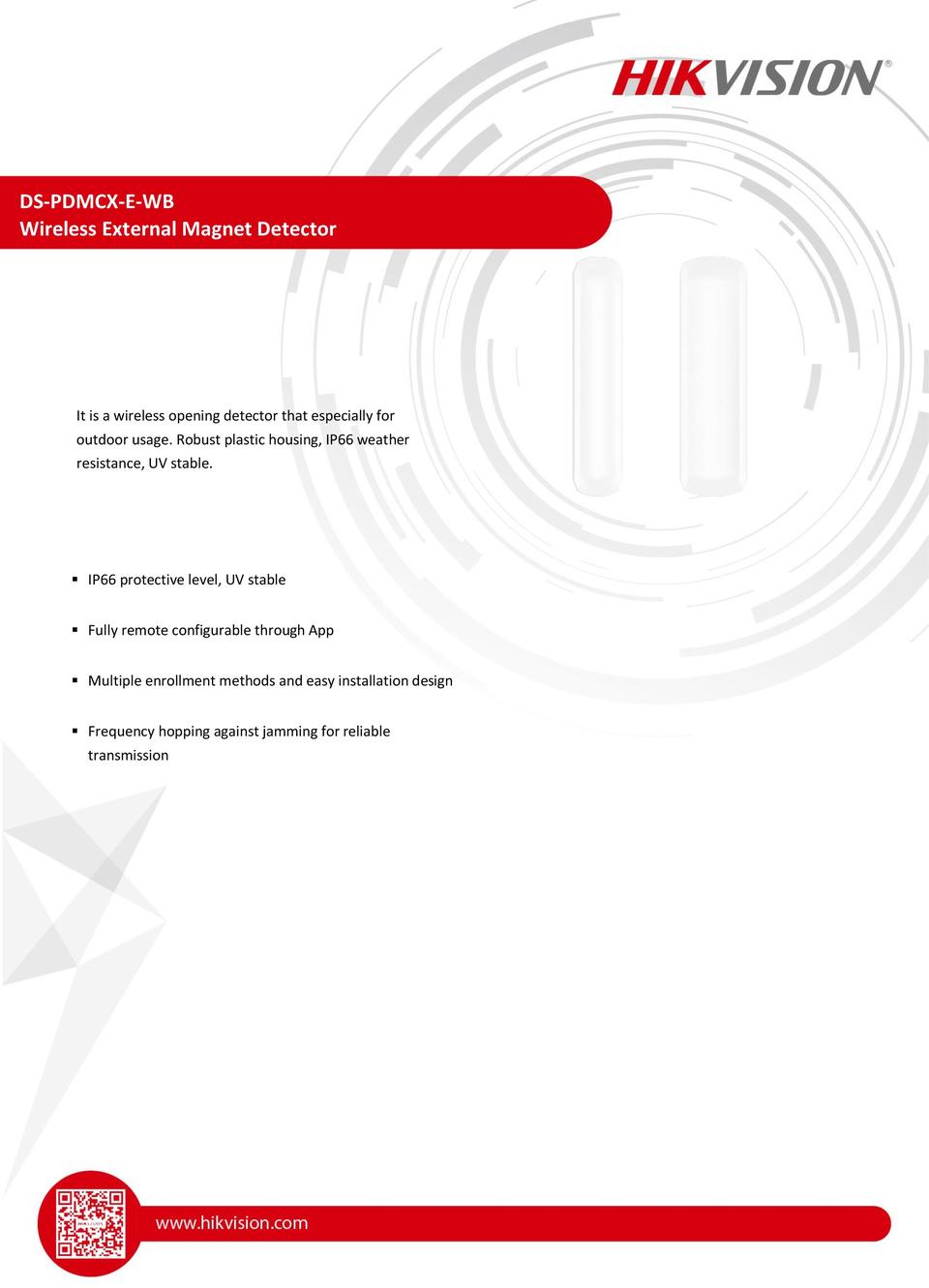

- DS-PDMCX-E-WB_Datasheet.pdf
