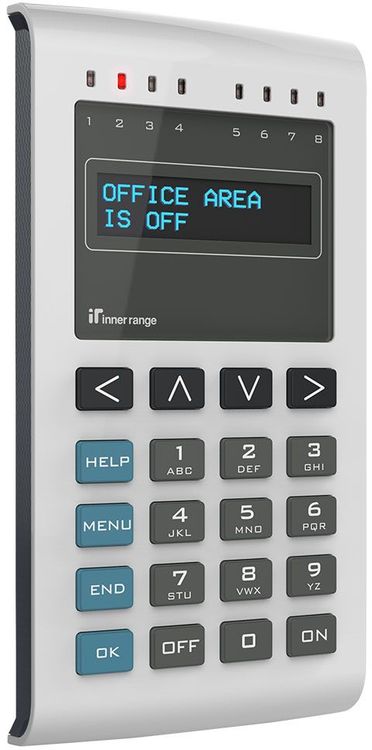

Inner Range EliteX LCD Keypad with SIFER Reader Add-on Module
Web ID: 366
The EliteX LCD keypad is elegantly designed and features a clear and easy to read OLED display. Users can use the
keypad to perform typical operations on the Integriti system. This includes control of security areas, door access, event
activity review and controlling the state of outputs.
Manufacturer PN: IK-ELITEXSIFER
Warranty: 2 Year
Manufacturer Website
Physical
Housing Dimensions: 152(H) x 90(W) x 18(D) (mm)
Installation Environment: 0° - 50°C @ 15% to 85% relative humidity (non-condensing)
Electrical
Input Voltage: 11V – 14V DC
Operational Current at 13.7V DC: 14.4mA (Back-light & LEDS off), 42mA (Back-light & LEDS max brightness)
Operations Current @ 13.7V DC SIFER Model: 46mA (Back-light & LEDS off), 186mA (Peak, Back-light & LEDS max brightness)
Auxiliary Open Collector Output Current: 18VDC, 500mA maximum each (PTC protected)
Display & Indicator Brightness
Display/ Keypad: Variable brightness via programming (Can be turned off)
LED Indicators: Variable brightness via programming
Indicators & I/O’s
LED Indicators: 8
Aux Outputs (Open collector): 2
Universal I/O’s: 2 (Input mode is compatible with original Elite, or EOL/Multi-state compatible)
