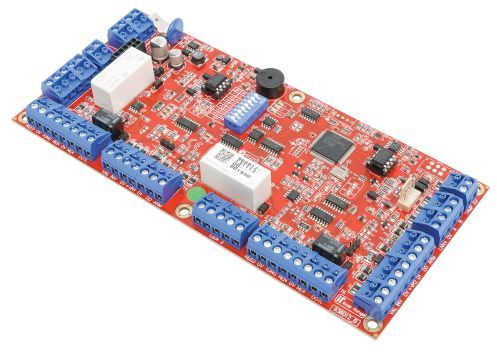

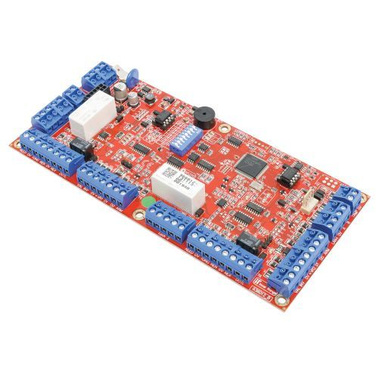

Inner Range Integriti SLAM 2 Door Controller Kit inc 2A P/S & 7aH Battery

Specifications
Physical
Enclosure Options: Small - 995200PEI Series - 252(L) x 358(W) x 85(D) (mm) (with 2Amp PSU - houses 1 SLAM)
Medium - 995201PEI Series - 460(L) x 358(W) x 85(D) (mm) (with 3Amp SMART PSU - houses up to 3 SLAM’s)
XLarge - 995203PEI Series - 702(L) x 358(W) x 85(D) (mm) (with 3Amp PSU - houses up to 5 SLAM’s)*
XLarge - 995203PE8 Series - 702(L) x 358(W) x 85(D) (mm) (with 8Amp PSU - houses up to 5 SLAM’s)
WideBody - 995204PE8 Series - 580(L) x 510(W) x 95(D) (mm) (with 8Amp PSU houses up to 6 SLAM’s)
Rack Mount - 995220PEI Series - 2RU 680(L) x 420(W) x 85(D) (mm) (with 3Amp PSU - houses up to 4 SLAM’s)*
PCB Size Code: Integriti “B” size
PCB Dimensions: 200(L) x 94(W) x 45(D) (mm)
Weight: 8.2 k.g. (Based on medium enclosure, mains transformer, 7AH battery and cover)
Installation Environment: 0ºC - 70ºC @15% - 90% Relative humidity (non-condensing)
Electrical (For PCB Only)
Power Supply Input: 11V to 14VDC
Current Consumption: 110mA standby. 175mA with lock relays on
NOTE: Current consumption does not include the current required by readers or other external devices such as locks, buzzers, lamps or any device attached to the DOTL, Valid, Invalid and RS-485 Reader connections
Over Current Protection: Reader +V connections. Protected with self-resetting PTC’s
Contact Ratings
Lock Relays: 5 Amps @ 30VDC
DOTL Relays: 1 Amp @ 30VDC (Door Open Too Long output)
Connections
Lock 1 & 2: Includes Lock+, Lock-, NO/COM/NC
Door 1 & 2: Includes Reed, 2 x 0v, Tongue, REN, REX, DOTL contacts
Wiegand Reader 1 & 2: Includes Valid, Invalid, 0V, Reader+, D1, D0, ARM
Lock Power: Includes Lock+, Lock- connections from external PSU
Cabinet Tamper: 2 pin connection for cabinet tamper switch
RS-485 LAN: 1, Includes LAN+, LAN-, A, B. (LAN addressing set via DIP switches)
RS-485 Reader Port: 1 (allows up to 4 Inner Range SIFER or OSDP compatible readers to be connected via RS-485 multi-drop LAN)
External Power Supply Monitoring (Compatible with Inner Range 3 & 8Amp SMART PSU’s)
AC Fail: External PS AC Fail
Low Battery: External PS Low Battery
LAN Fuse: External PS LAN Fuse
Detector Fuse: External PS Detector Fuse
Low Volts: External PS Low Volts
PSU Fail: External PS Fail

• Document

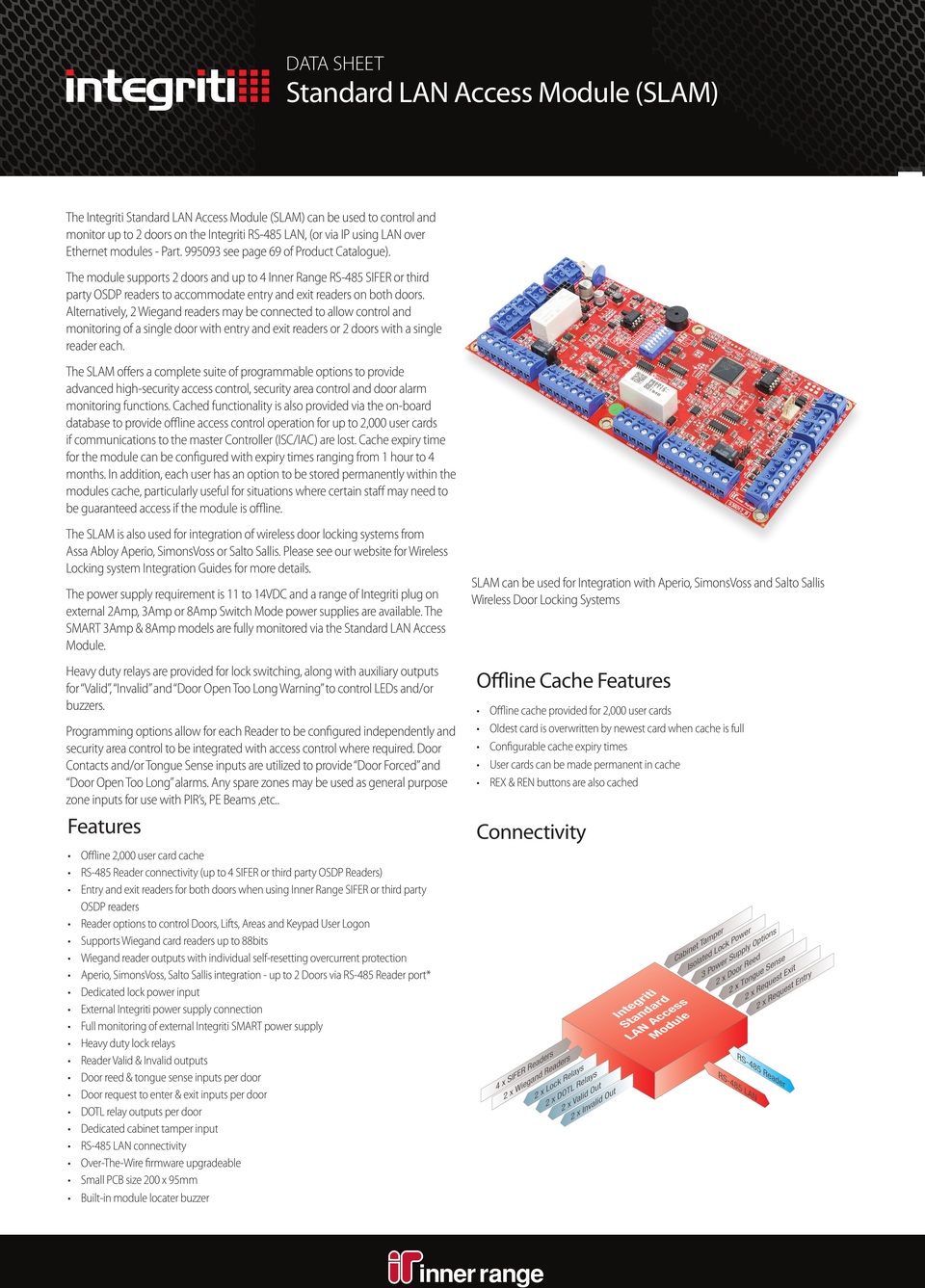

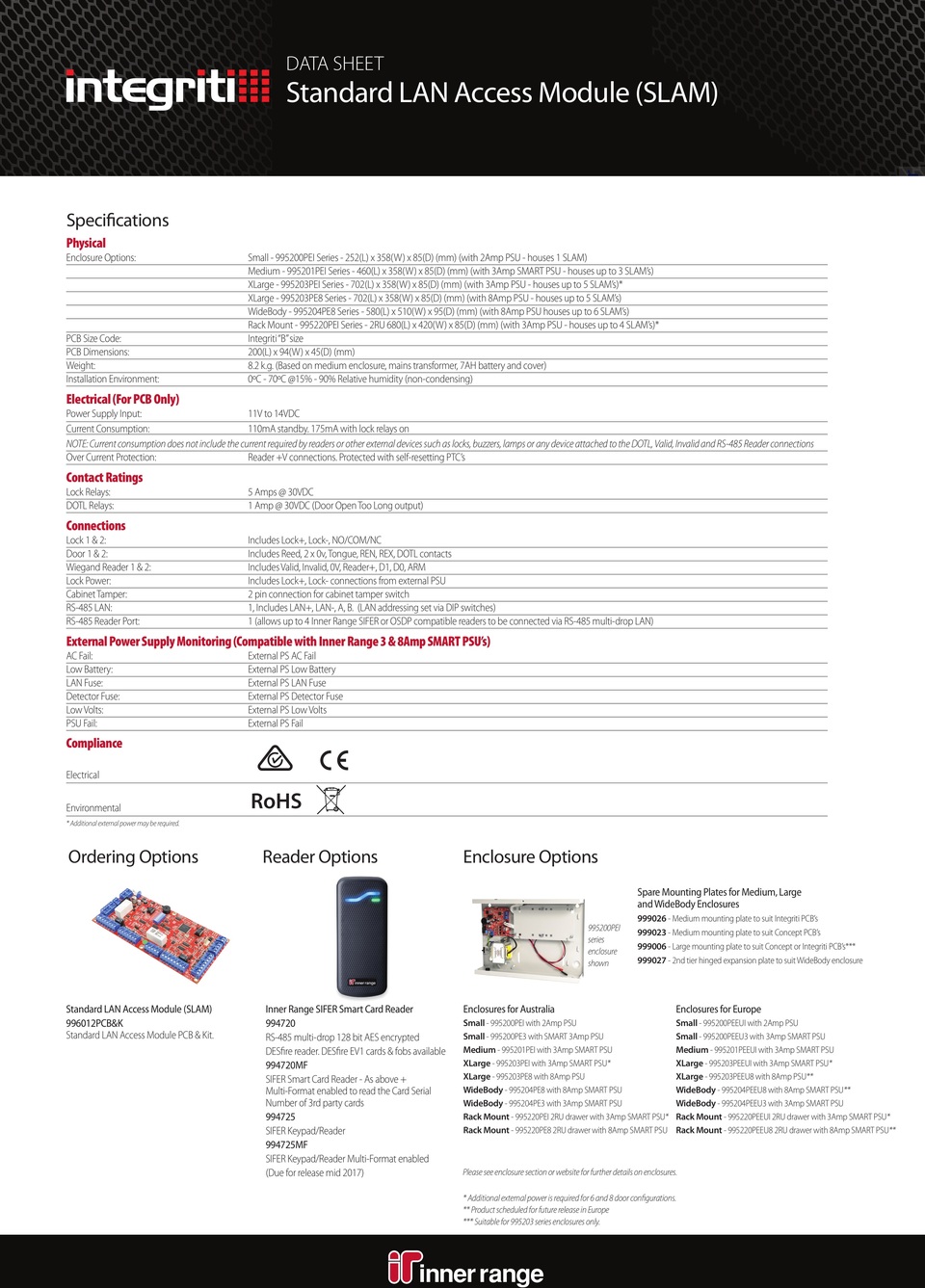

• IR-996012PCB&K Datasheet.pdf
