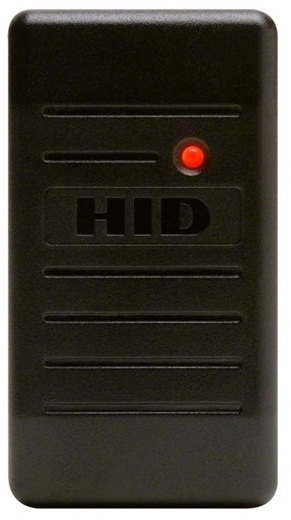

ProxPoint 125Khz Mini Mullion Proximity Reader (Wiegand Output)
Web ID: 371
HID's ProxPoint Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
Manufacturer PN: HID-6005BKB00
Warranty: 2 Year

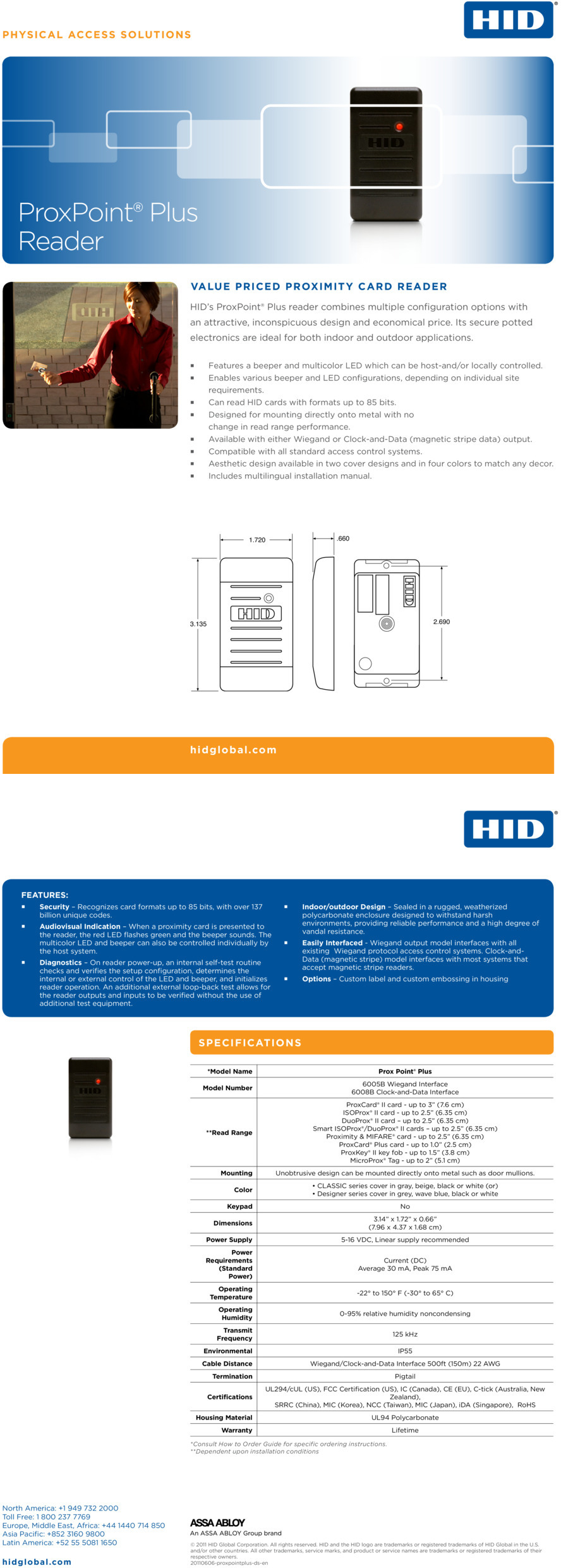

*Model Name Prox Point® Plus Model Number 6005B Wiegand Interface 6008B Clock-and-Data Interface **Read Range ProxCard® II card - up to 3” (7.6 cm) ISOProx® II card - up to 2.5” (6.35 cm) DuoProx® II card – up to 2.5” (6.35 cm) Smart ISOProx®/DuoProx® II cards – up to 2.5” (6.35 cm) Proximity & MIFARE® card - up to 2.5” (6.35 cm) ProxCard® Plus card - up to 1.0” (2.5 cm) ProxKey® II key fob - up to 1.5” (3.8 cm) MicroProx® Tag - up to 2” (5.1 cm) Mounting Unobtrusive design can be mounted directly onto metal such as door mullions. Color • CLASSIC series cover in gray, beige, black or white (or) • Designer series cover in grey, wave blue, black or white Keypad No Dimensions 3.14” x 1.72” x 0.66” (7.96 x 4.37 x 1.68 cm) Power Supply 5-16 VDC, Linear supply recommended Power Requirements (Standard Power) Current (DC) Average 30 mA, Peak 75 mA Operating Temperature -22° to 150° F (-30° to 65° C) Operating Humidity 0-95% relative humidity noncondensing Transmit Frequency 125 kHz Environmental IP55 Cable Distance Wiegand/Clock-and-Data Interface 500ft (150m) 22 AWG Termination Pigtail Certifications UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA (Singapore), RoHS Housing Material UL94 Polycarbonate Warranty Lifetime
