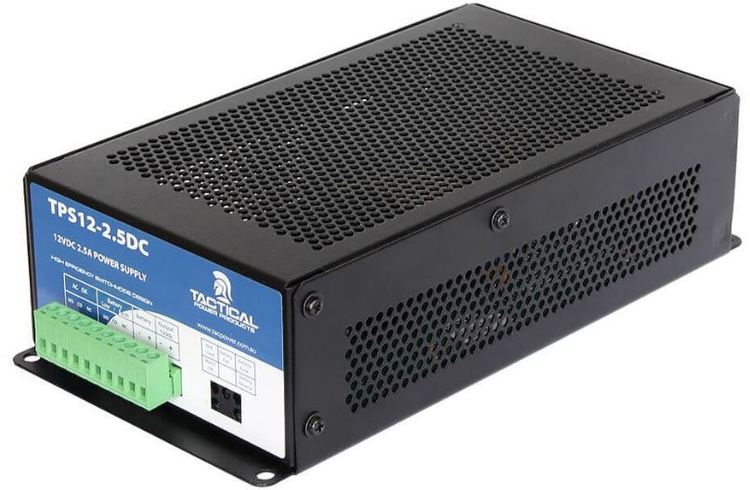

Tactical Power Supply, ECO, 12VDC, 2.5A, 13.8V Charger, AC Fail & Low Battery Outputs
Web ID: 783
The Tactical TP-TPS12-2.5DC power supply provides a switch mode regulated 12.4Vdc at up to 2.5A via its primary output channel (to power loads such as voltage sensitive CCTV cameras). It includes a separate 13.8Vdc, 700mA channel to keep your standby battery charged - making the TP-TPS12-2.5DC a 3.2A power supply.
In the event of a 240V mains failure, the TP-TPS12-2.5DC automatically re-regulates the 13.8V standby battery voltage to 12.4Vdc ensuring that sensitive equipment is not subjected to higher, potentially damaging voltages.
Manufacturer PN: TPS12-2.5DC
Warranty: 1 Year
The Tactical TP-TPS12-2.5DC power supply provides a switch mode regulated 12.4Vdc at up to 2.5A via its primary output channel (to power loads such as voltage sensitive CCTV cameras). It includes a separate 13.8Vdc, 700mA channel to keep your standby battery charged - making the TP-TPS12-2.5DC a 3.2A power supply.
In the event of a 240V mains failure, the TP-TPS12-2.5DC automatically re-regulates the 13.8V standby battery voltage to 12.4Vdc ensuring that sensitive equipment is not subjected to higher, potentially damaging voltages.
- Genuine 2.5A continuous output
- Dual channel - 12Vdc output (2.5A) / 13.8Vdc battery charger (700mA)
- Total output current of 3.2A (2.5A + 700mA)
- AC fail and low battery relay outputs
- Short circuit protection
- Input Voltage: 240Vac / 50Hz
- Operating Temperature: 0-50degC
- Dimensions: 225L x 120W x 60H mm
- Weight: 1.2kg
- Document
- TP-TPS12-2.5DC Datasheet.pdf
