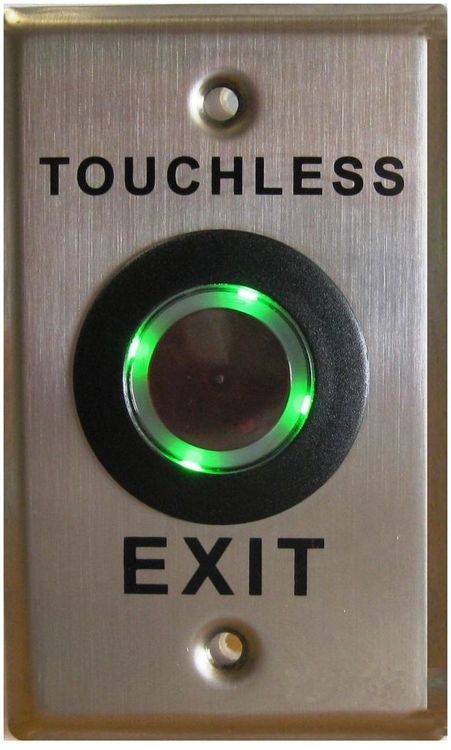

Touchless Exit Button, SS Plate, Illuminated, Water Resistant
Web ID: 932
Touchless button WEL3761 is uniquely designed for the application where sanitary conditions are needed, like hospitals, cleanrooms, food processing factories and laboratory. It also provides much easier access for the disabled to open doors through a sensor.
Manufacturer PN: CSD-WEL3761S
Warranty: 1 Year
$68
- The switch can be activated by a simple hand wave or approach ? sanitary and easier access
- No moving parts
- Fully waterproof IP67 rated
- Compact design can be easily fitted into a surface mounting box
- Dual colour LED illumination
- Two isolated relay outputs NO and NC can be used to drive strikes or magnet/electric relay locks directly
- Output timer selectable: 2 or 10 seconds
- Stainless steel or plastic mounting plate
- Input voltage: 12VDC; power connector 24VAC to 12VDC available
- Current: 18mA standby; 50mA activation
- Output: isolated NO and NC; 1A 30VDC
- Stainless steel or plastic mounting plate
- Dimensions: 70 (w) x 115 (h) x 26 (d)mm
