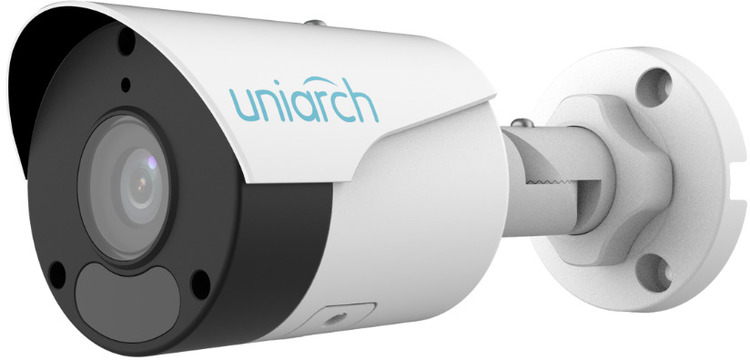

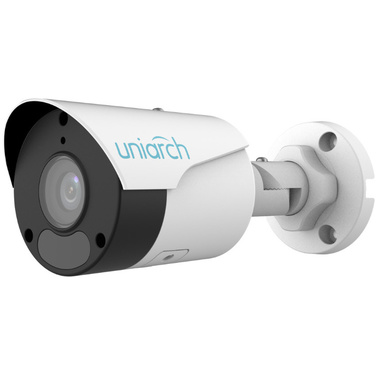

Uniarch IPC-B1E8-AF28K 8MP Starlight Mini Bullet with Mic & 2.8mm Lens
Web ID: 1245
Uniarch 8MP Starlight Fixed Bullet Network Camera, Min. illumination 0.005lux, Intrusion Detection (Based on Human), powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Manufacturer PN: IPC-B1E8-AF28K
Warranty: 3 Year
Manufacturer Website
$197
| IPC-B1E8-AF28K | ||||||
| Camera | ||||||
| Sensor | 1/2.7″, 8.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON)
0Lux with IR on | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Adjustment angle | Pan: 0° ~ 360°
Tilt: 0° ~ 90° Rotate: 0° ~ 360° | |||||
| S/N | >56dB | |||||
| WDR | 120dB | |||||
| Lens | ||||||
| Lens Type | 2.8mm @1.6, Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Angle of View (H) | 112.9° | |||||
| Angle of View (V) | 59.1° | |||||
| Angle of View (O) | 121.2° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 84.0 | 33.6 | 16.8 | 8.4 | ||
| Illuminator | ||||||
| IR Range | Up to 50m (164ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Supported | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Intrusion(based on human body detection) | |||||
| motion detection, tampering alarm, audio detection | ||||||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | Uniarch Client
Uniarch APP | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Interface | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| General | ||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||
| Power consumption: Max 6.5W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L × W × H) | 179×71×70mm (7.0”×2.8”×2.8”) | |||||
| Weight | 0.45kg (0.99lb) | |||||
| Material | Metal | |||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||
| Storage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Reset Button | Supported | |||||
| Ingress Protection | Ingression protection: IP67 | |||||
