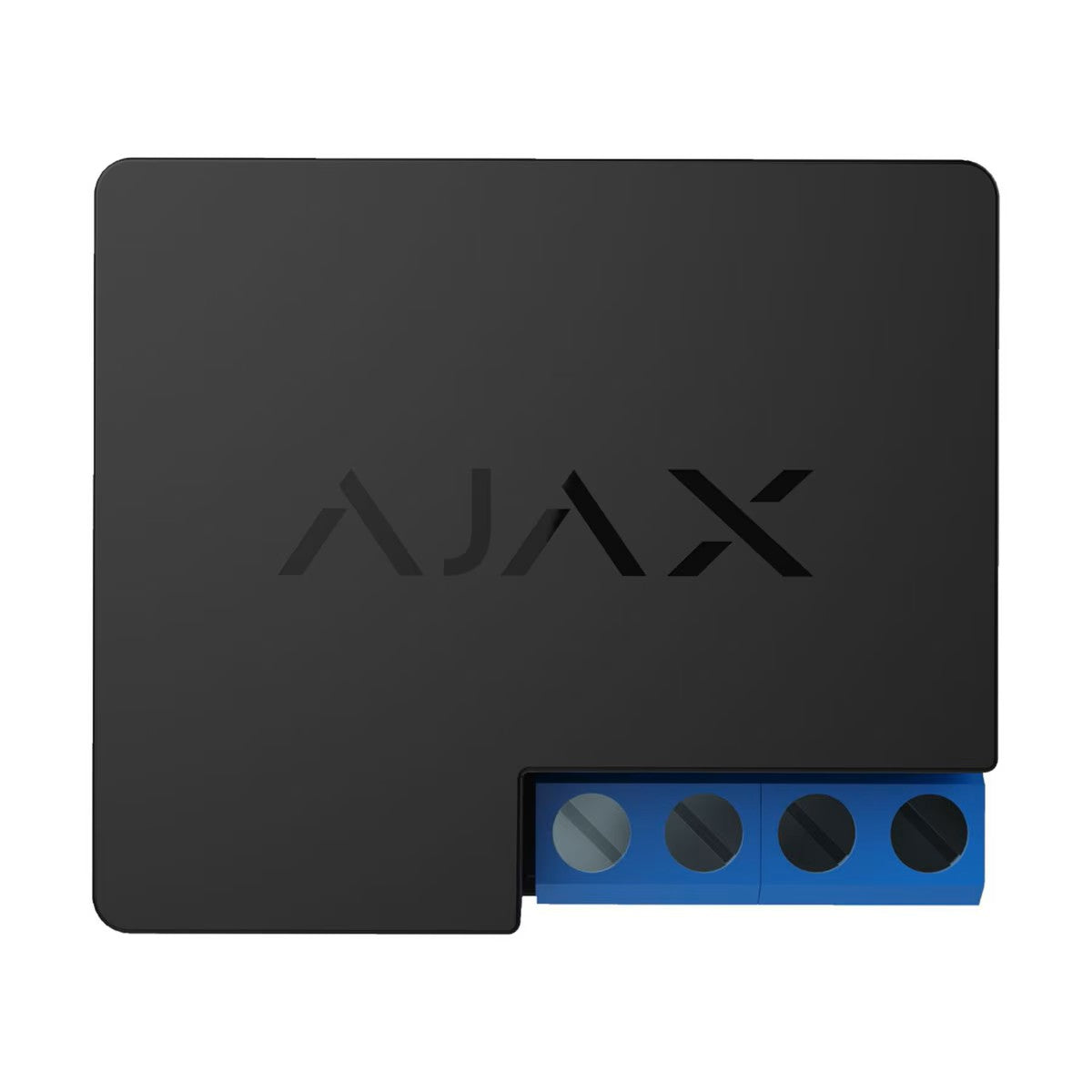

AJAX 7649 Wall Switch
The Ajax WallSwitch Jeweller is a compact wireless power relay designed to remotely control 110–230 V AC electrical appliances and circuits through the Ajax system. It can switch loads of up to 13 A / 3 kW at 230 V for resistive loads and can be controlled manually through Ajax apps or automatically using scenarios.
WallSwitch also provides built-in energy monitoring, allowing the Ajax system to monitor parameters including voltage, current and power consumption. It includes protection against overcurrent, overvoltage and overheating.
Communication with the Ajax hub is provided through the encrypted Jeweller radio protocol, with a range of up to 1,000 metres in open space. The compact module is designed for installation behind a compatible power outlet, switch or within another suitable indoor enclosure.
Key Features
- Wireless 110–230 V AC power relay
- Maximum load current: 13 A
- Up to 3 kW resistive load at 230 V
- Remote ON/OFF control through Ajax apps
- Supports Ajax automation scenarios
- Built-in energy consumption monitoring
- Monitors voltage, current and consumed power
- Overcurrent protection
- Overvoltage protection
- Overheating protection
- Secure Jeweller wireless communication
- Wireless range up to 1,000 m in open space
- Compact 38 × 25 × 18 mm design
- Designed for indoor installation
- Requires installation by a licensed electrician
