Dahua IPC-PDW5849-A180-E2-ASTE 4K 8MP 180 Duo Splicing Panoramic Turret Camera

Ultra-Wide 180° Panoramic Surveillance with Advanced AI Detection and Full-Colour Night Vision

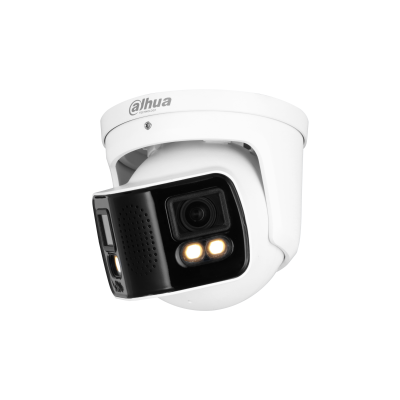

The Dahua IPC-PDW5849-A180-E2-ASTE is a high-performance 8MP panoramic IP turret camera featuring dual 4MP image sensors that intelligently stitch together to deliver a seamless 180° ultra-wide surveillance image.

Part of Dahua's professional WizMind series, this camera combines exceptional image quality, advanced artificial intelligence and full-colour night vision to provide comprehensive security coverage across large areas.

Ideal for commercial buildings, warehouses, car parks, retail premises, schools and residential properties, its ultra-wide viewing angle can reduce the number of cameras required to monitor expansive areas.

Key Features

• 8MP Panoramic Resolution: Dual 4MP CMOS sensors combine to produce a high-resolution 4096 × 1800 panoramic image.

• 180° Seamless Image Splicing: Advanced stitching technology combines images from both lenses into a single ultra-wide surveillance view.

• Full-Colour Night Vision: Large 1/1.8" sensors and F1.0 apertures deliver outstanding low-light performance, with integrated warm-light illumination providing colour imaging at night.

• 40m Warm-Light Illumination: Four integrated warm-light illuminators provide additional lighting for dark environments.

• Advanced WizMind AI: Intelligent perimeter protection with human and vehicle classification helps reduce false alarms.

• Smart Motion Detection (SMD 3.0): Distinguishes between people, vehicles and irrelevant movement for more accurate security notifications.

• Intelligent Video Analytics: Supports tripwire detection, intrusion detection, loitering, abandoned object detection, people counting and heat mapping.

• Electronic Pan, Tilt & Zoom (ePTZ): Digitally zoom into areas of interest within the panoramic image without physically moving the camera.

• Built-In Microphone & Speaker: Supports two-way audio communication through compatible monitoring systems.

• 140dB Wide Dynamic Range: Maintains image clarity in challenging lighting conditions with bright and dark areas.

• H.265+ Video Compression: Efficient video compression reduces bandwidth consumption and recording storage requirements.

• MicroSD Card Support: Supports local recording to a microSD card up to 512GB (card sold separately).

• IP67 Weather Protection: Durable weather-resistant construction suitable for indoor and outdoor installations.

• PoE Connectivity: Supports Power over Ethernet for simplified installation using a single network cable.

Advanced 180° Panoramic Coverage

Unlike conventional security cameras that cover a limited field of view, the Dahua Duo Splicing camera utilises two independent image sensors to create one continuous 180° panoramic image.

This technology provides exceptional situational awareness while minimising blind spots, making it particularly suitable for monitoring wide building frontages, loading docks, car parks and open commercial spaces.

Intelligent AI Security

Dahua's WizMind AI technology delivers advanced video analytics designed to improve security monitoring and reduce unnecessary alerts.

Intelligent detection can distinguish between humans and vehicles, while additional analytics including loitering detection, people counting and perimeter protection provide valuable functionality for commercial and industrial applications.

Full-Colour Surveillance Day and Night

Featuring high-sensitivity image sensors, large F1.0 apertures and built-in warm-light illumination, the camera is designed to capture detailed full-colour images in low-light environments.

Unlike traditional infrared-only cameras, full-colour imaging helps preserve important visual details such as clothing colours, vehicle colours and other identifying characteristics.

Technical Specifications

• Model: IPC-PDW5849-A180-E2-ASTE

• Camera Type: Dual-sensor panoramic IP turret camera

• Resolution: 8MP (4096 × 1800)

• Image Sensors: Dual 1/1.8" CMOS

• Lenses: Dual 3.6mm fixed lenses

• Field of View: 180° horizontal

• Maximum Frame Rate: 25fps at full resolution

• Night Vision: Full-colour with integrated warm-light illumination

• Illumination Range: Up to 40m

• Wide Dynamic Range: 140dB

• AI Technology: WizMind, SMD 3.0, perimeter protection, people counting

• Audio: Built-in microphone and speaker, two-way audio

• Video Compression: H.265, H.265+, H.264, H.264+

• Local Storage: microSD up to 512GB

• Power Supply: 12V DC or PoE

• Weather Rating: IP67

Ideal Applications

• Commercial and industrial premises

• Warehouses and distribution centres

• Shopping centres and retail environments

• Car parks and loading docks

• Schools and educational facilities

• Large residential properties

• Wide building frontages and outdoor areas

The Dahua IPC-PDW5849-A180-E2-ASTE delivers exceptional wide-area security with its seamless 180° panoramic image, full-colour night vision and intelligent AI analytics, providing a powerful surveillance solution where comprehensive coverage is essential.
